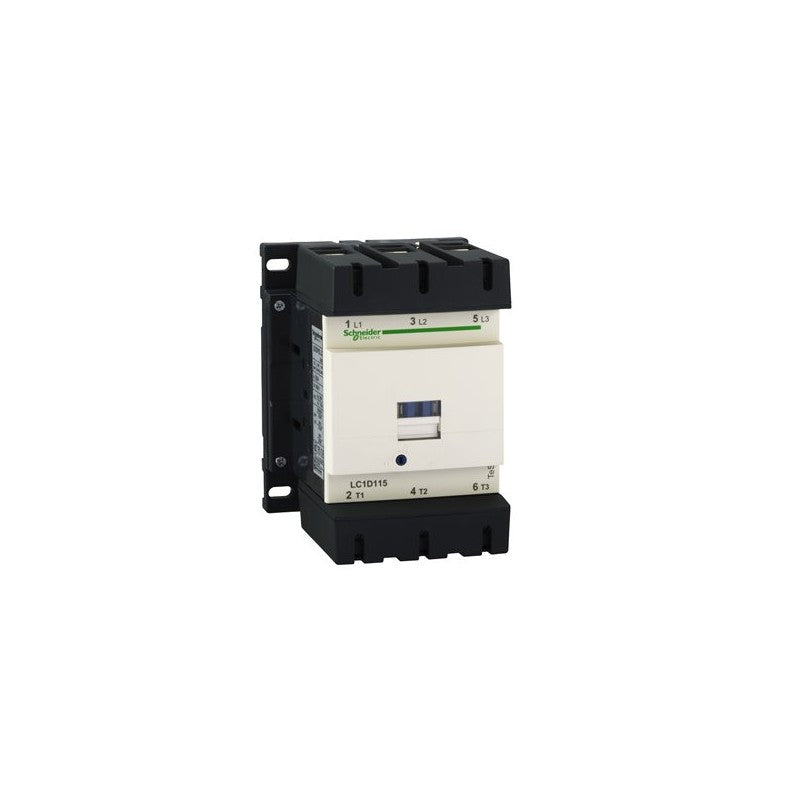

Schneider Electric's TeSys D contactor, model LC1D1156F7, is designed for robust motor control applications. This 3-pole contactor is rated for AC-3 duty and can handle currents up to 115 Amps at voltages less than or equal to 440 Volts. Its 110 Volt AC coil operates on a 50/60 Hz frequency, making it suitable for a wide range of industrial power systems.

Technical details

• Series: TeSys D
• Configuration: 3-pole (3 Normally Open contacts)
• AC-3 Utilization Category: Suitable for motor control applications
• Maximum Voltage Rating: ≤ 440 V AC
• Continuous Current Rating: 115 A
• Coil Voltage: 110 V AC
• Coil Frequency: 50/60 Hz
• Mounting Type: DIN rail or panel mount (verify mounting details against manufacturer datasheet)

Applications & compatibility

The LC1D1156F7 contactor is commonly employed in heavy-duty industrial environments for direct-on-line starting of three-phase motors. It is an integral component in control panels for machinery such as pumps, fans, compressors, conveyors, and machine tools across various sectors including manufacturing, material handling, and water treatment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D1156F7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
