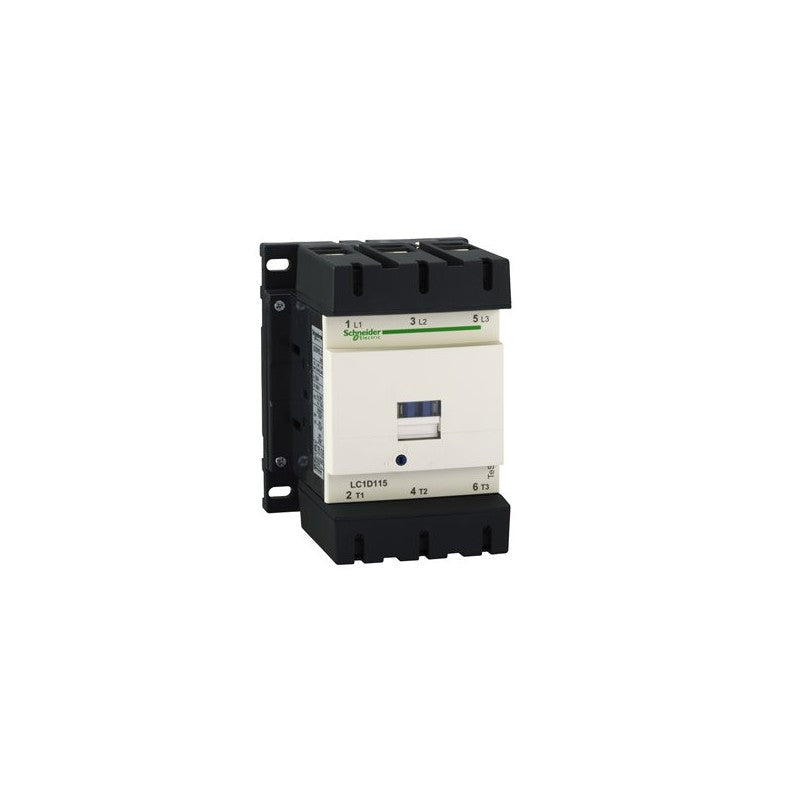

Schneider Electric's TeSys D contactor, model LC1D1156M7, is engineered for robust motor control applications. This 3-pole contactor is designed for AC-3 duty, capable of switching inductive loads up to 440V and handling currents of 115A. Its integrated coil operates on 220V AC at either 50Hz or 60Hz, ensuring compatibility with standard industrial power supplies.

Technical details

• Series: TeSys D
• Configuration: 3 Pole (3 Normally Open contacts)
• AC-3 Utilization Category: Suitable for switching squirrel cage motors and other inductive loads.
• Maximum Operational Voltage: Up to 440V AC
• Rated Operational Current (AC-3): 115 A
• Coil Voltage: 220V AC
• Coil Frequency: 50/60 Hz
• Contact Type: 3 Normally Open (NO)

Applications & compatibility

The LC1D1156M7 is commonly deployed in heavy-duty industrial environments for direct-on-line motor starting and control. It is suitable for use in manufacturing plants, material handling systems, and pump control applications where reliable and high-current switching is essential. This contactor is designed to integrate seamlessly into standard motor control panels and starter assemblies.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D1156M7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
