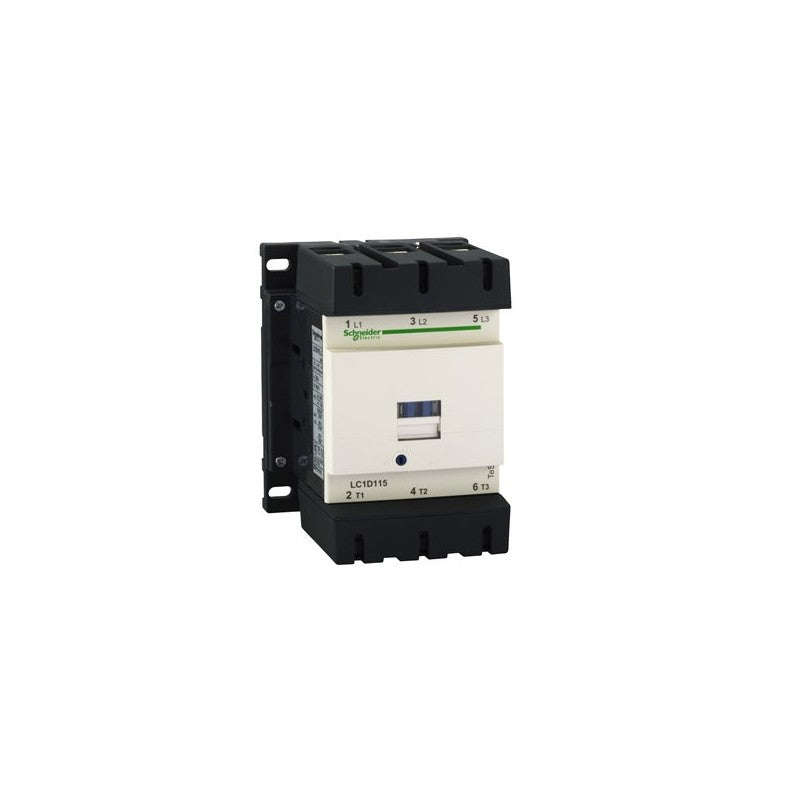

Part of the Schneider Electric TeSys D contactor family, the LC1D1156Q7 is a 3-pole power contactor designed for AC-3 duty. This contactor is rated for switching motor loads up to 115 Amperes at 440 Volts AC. It features a 380 Volt AC 50/60 Hz coil for control circuit operation.

Technical details

• Series: TeSys D
• Contactor Type: Power Contactor
• Number of Poles: 3
• Normally Open (NO) Contacts: 3
• AC-3 Utilization Category: Suitable for switching motor loads
• Maximum AC-3 Voltage Rating: Up to 440 V AC
• Maximum AC-3 Current Rating: 115 A
• Coil Voltage: 380 V AC
• Coil Frequency: 50/60 Hz

Applications & compatibility

The LC1D1156Q7 is commonly employed in industrial control panels for starting and stopping three-phase induction motors. It is suitable for applications such as pump control, fan control, compressor starting, and general motor switching in manufacturing facilities, material handling systems, and HVAC applications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D1156Q7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
