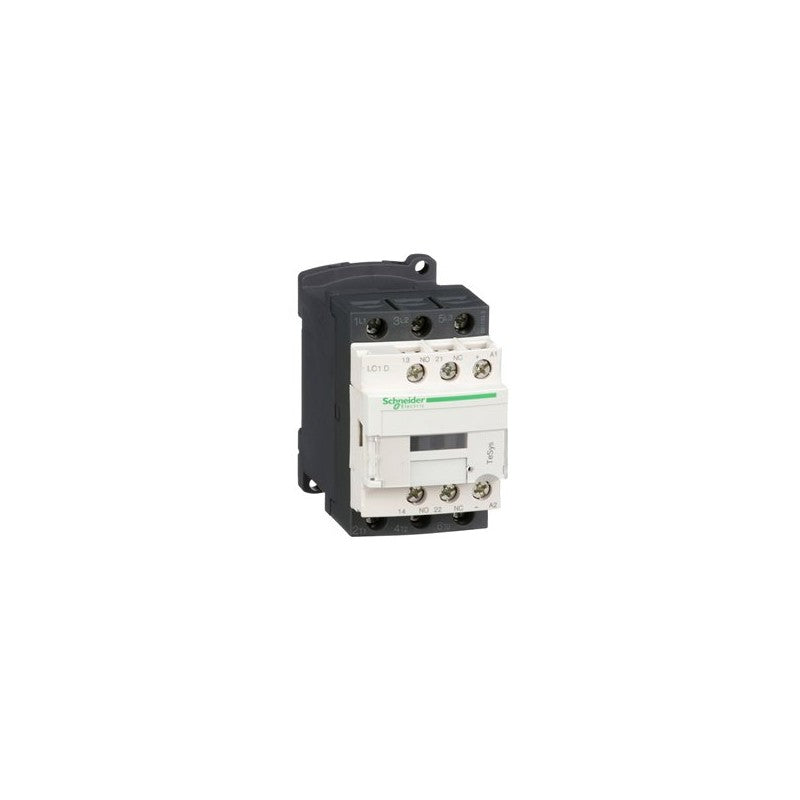

Schneider Electric's TeSys D contactor, model LC1D126SLS207, is a 3-pole (3 normally open contacts) device designed for AC-3 duty. This contactor is rated for a maximum voltage of 440V and handles a current of 12A. It features a low-voltage DC coil operating at 72V DC, making it suitable for control circuits requiring a specific DC voltage supply.

Technical details

• Series: TeSys D
• Contact Configuration: 3 Pole (3 NO)
• AC-3 Rated Current: 12A
• Maximum AC Voltage Rating: 440V
• Coil Voltage: 72V DC
• Control Circuit Type: DC
• Terminal Type: Screw Terminals
• Mounting Type: DIN Rail or Screw Mount

Applications & compatibility

The LC1D126SLS207 is commonly employed in motor control applications within industrial environments. It is suitable for starting, stopping, and reversing three-phase AC motors up to 440V. Typical applications include control panels for HVAC systems, pump controls, conveyor systems, and general machine tool applications where reliable motor switching is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D126SLS207 or contact our technical team for cross-reference assistance with compatible TeSys D components.
