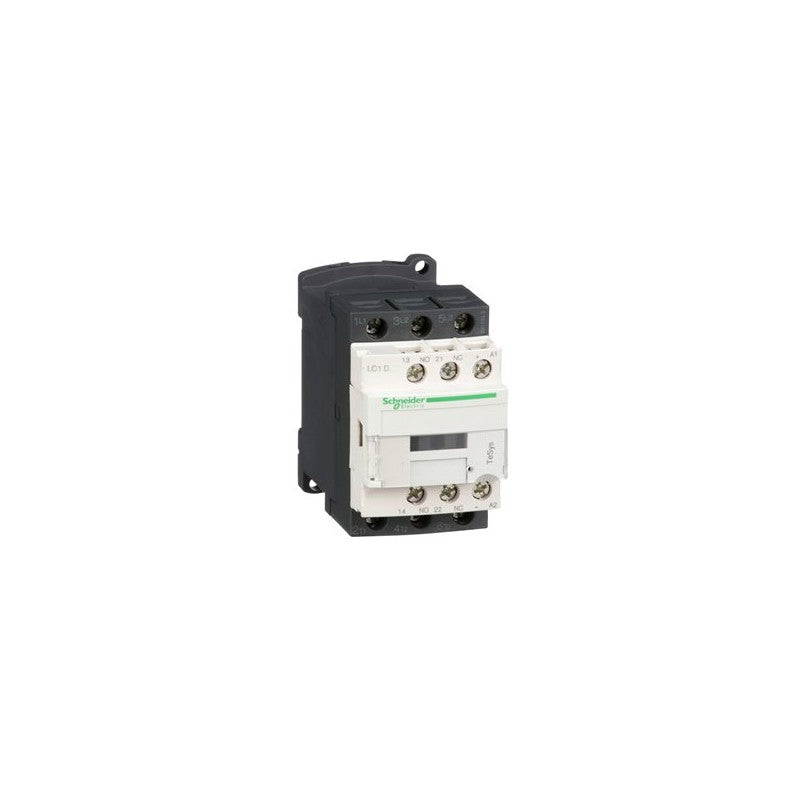

The Schneider Electric LC1D12ED is a TeSys D series 3-pole contactor designed for AC-3 duty. This contactor is rated for voltages up to 440V and a continuous current of 12A. It features a 48V DC coil, making it suitable for applications requiring DC control power.

Technical details

• Series: TeSys D
• Number of Poles: 3
• Contact Configuration: 3 Normally Open (NO)
• AC-3 Utilization Category: Suitable for AC-3 motor control applications
• Maximum AC Voltage Rating: ≤ 440 V
• Continuous Current Rating: 12 A
• Coil Voltage: 48 V DC
• Terminal Type: Screw terminals (verify against datasheet for specific configuration)

Applications & compatibility

This TeSys D contactor is commonly employed in motor control circuits for various industrial machinery. Applications include direct-on-line starting of motors in packaging equipment, material handling systems, and HVAC units. It is designed to switch inductive loads reliably within its specified voltage and current limits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D12ED or contact our technical team for cross-reference assistance with compatible TeSys D components.
