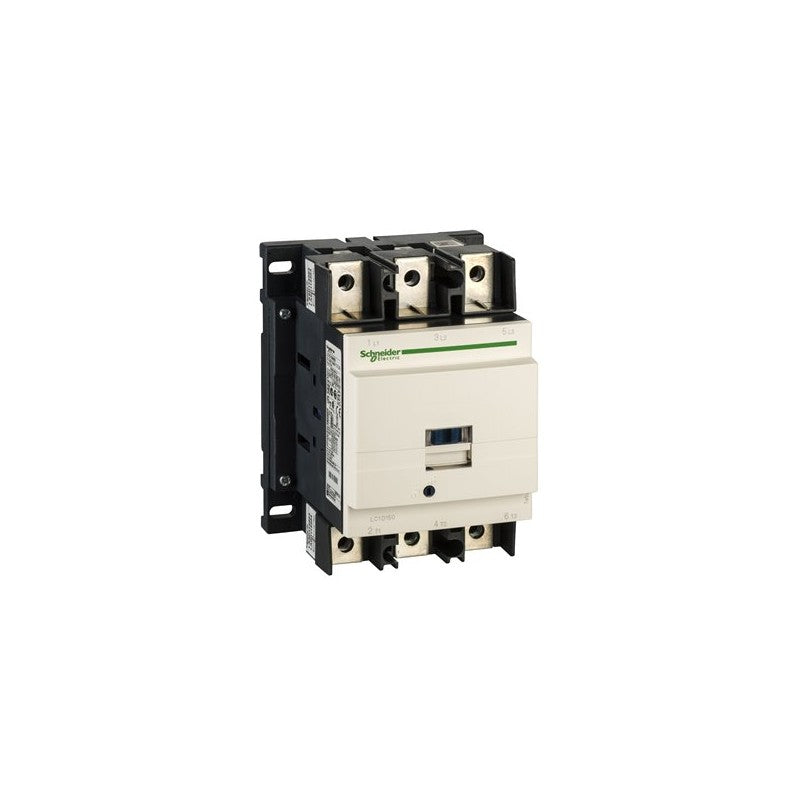

Part of the Schneider Electric TeSys D contactor family, the LC1D1506F7 is a 3-pole contactor designed for AC-3 duty. This contactor is rated for circuits up to 440V and can handle a continuous current of 150A. Its coil operates on 110V AC at either 50Hz or 60Hz, making it suitable for a wide range of industrial power control applications.

Technical details

• Series: TeSys D
• Number of Poles: 3
• Contact Configuration: 3 Normally Open (NO)
• AC-3 Utilization Category: Suitable for motor control applications
• Maximum Voltage Rating: <= 440 V
• Continuous Current Rating: 150 A
• Coil Voltage: 110 V AC
• Coil Frequency: 50/60 Hz

Applications & compatibility

The LC1D1506F7 contactor is commonly employed in motor starter circuits for applications such as pumps, fans, compressors, and conveyors. It is designed for direct on-line starting of three-phase induction motors and is compatible with various control systems requiring robust power switching capabilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D1506F7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
