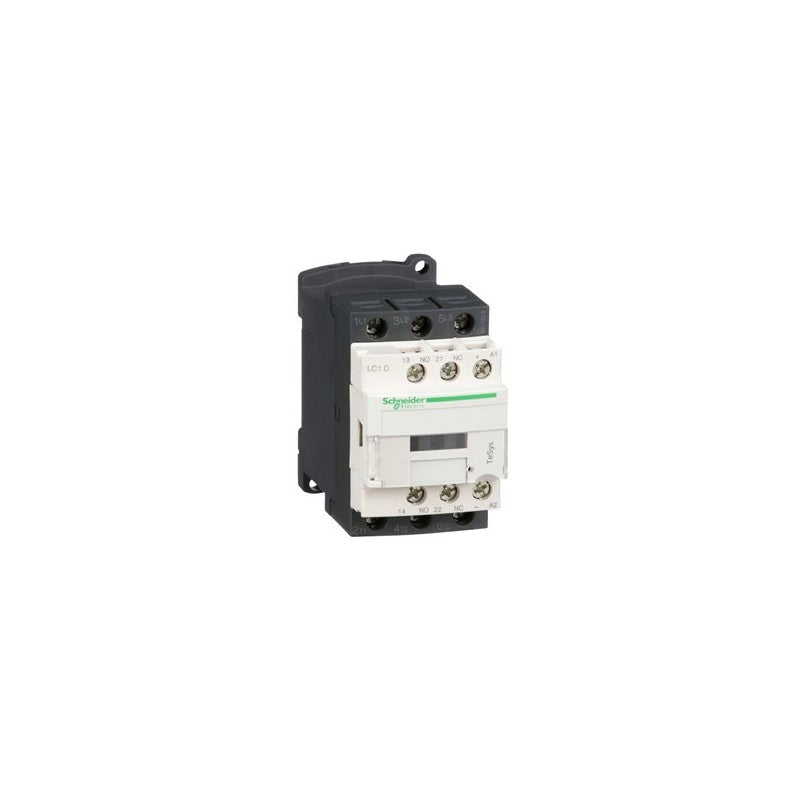

The Schneider Electric LC1D18FD is a TeSys D series 3-pole contactor designed for AC-3 duty. This contactor is rated for voltages up to 440V and can handle a continuous current of 18A. It features a 110V DC coil, making it suitable for control circuits requiring a DC power source. This component is commonly integrated into motor control systems and power distribution panels within industrial environments.

Technical details

• Series: TeSys D
• Number of Poles: 3
• Contact Configuration: 3 Normally Open (NO)
• AC-3 Utilization Category
• Maximum AC-3 Voltage Rating: ≤ 440 V
• Continuous Current Rating (AC-3): 18 A
• Coil Voltage: 110 V DC
• Control Circuit Type: DC

Applications & compatibility

This TeSys D contactor is engineered for direct on-line motor starting applications and general power switching. It is frequently employed in control panels for machinery such as pumps, fans, compressors, and conveyors. Its robust design ensures reliable operation in demanding industrial settings, including manufacturing plants, water treatment facilities, and material handling systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D18FD or contact our technical team for cross-reference assistance with compatible TeSys D components.
