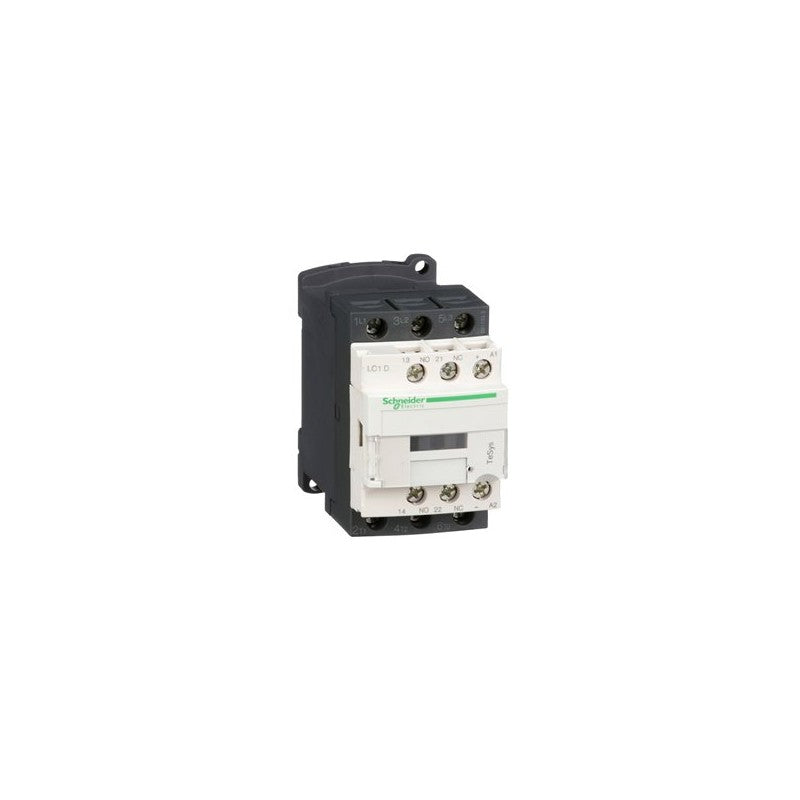

The Schneider Electric LC1D18JD is a TeSys D series 3-pole contactor designed for AC-3 duty. This contactor is rated for voltages up to 440V and handles a continuous current of 18A. It features a 12V DC coil, making it suitable for applications requiring direct current control signals, often found in motor control circuits and power distribution systems.

Technical details

• Series: TeSys D
• Configuration: 3-pole (3 Normally Open contacts)
• AC-3 Utilization Category: Suitable for controlling AC-3 type loads, such as squirrel cage motors.
• Maximum AC Voltage Rating: Up to 440V
• Continuous Current Rating: 18A
• Coil Voltage: 12V DC
• Control Type: DC coil
• Mounting Type: DIN rail or panel mount (verify mounting details against manufacturer datasheet)

Applications & compatibility

This TeSys D contactor is commonly employed in industrial motor control applications, including pump systems, fan controls, and conveyor belt drives. Its 12V DC coil makes it compatible with DC control circuits found in various automation panels and machine tool applications. It serves as a reliable switching device for starting, stopping, and reversing three-phase motors.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D18JD or contact our technical team for cross-reference assistance with compatible TeSys D components.
