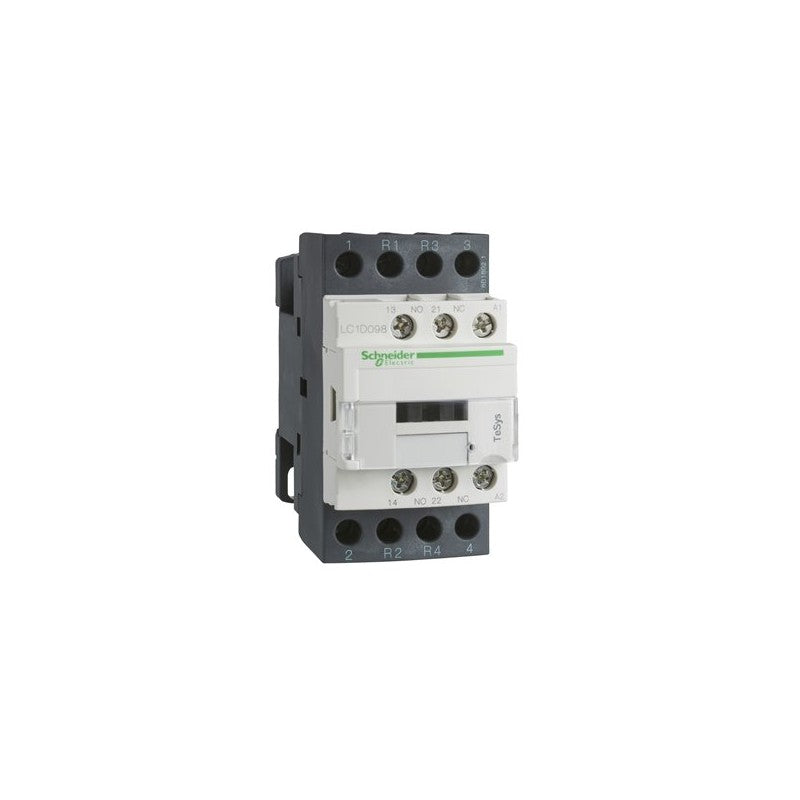

Schneider Electric's TeSys D contactor, model LC1D258FD, is designed for robust power switching in demanding industrial environments. This 4-pole contactor features a configuration of 2 normally open (NO) and 2 normally closed (NC) contacts, suitable for AC-1 duty applications up to 440 Volts and 40 Amps. The integrated coil operates on 110 Volts DC, providing reliable actuation for motor control and power distribution circuits.

Technical details

• Series: TeSys D
• Poles: 4 (2 NO + 2 NC)
• AC-1 Rating: Up to 440 V, 40 A
• Coil Voltage: 110 V DC
• Contact Configuration: 2 Normally Open (NO), 2 Normally Closed (NC)
• Duty Type: AC-1
• Control Circuit Type: DC

Applications & compatibility

The LC1D258FD contactor is commonly employed in motor control circuits for applications such as HVAC systems, pump control, and general industrial machinery. Its versatile contact arrangement makes it suitable for direct on-line starting, reversing applications, or as a control relay in complex automation systems. Verify compatibility with your specific control system and voltage requirements against the manufacturer's datasheet.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D258FD or contact our technical team for cross-reference assistance with compatible TeSys D components.
