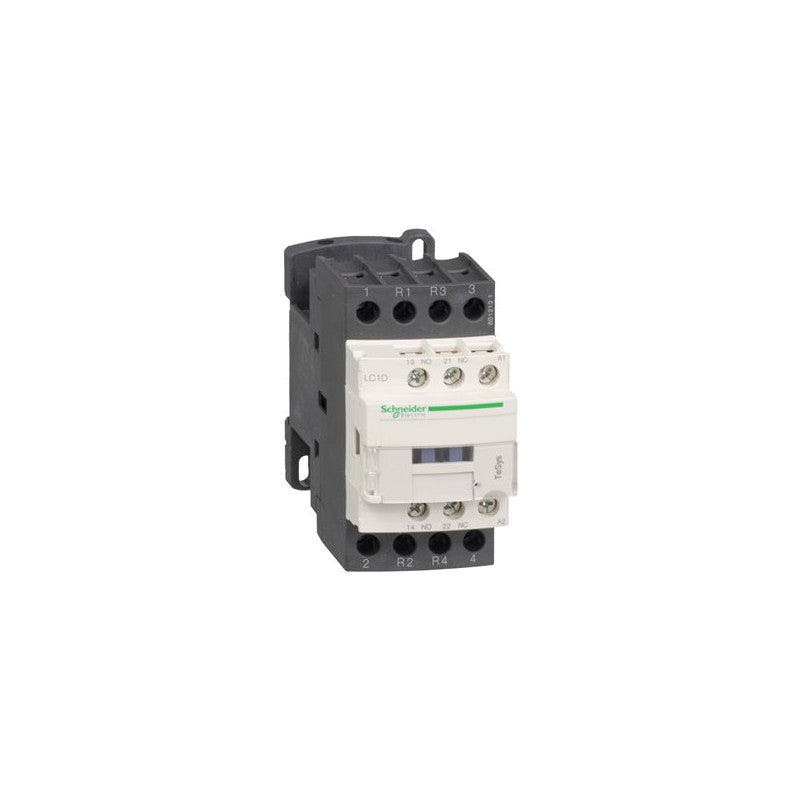

The Schneider Electric LC1D258M7 is a TeSys D series 4-pole contactor designed for AC-1 duty applications. This contactor features a configuration of 2 normally open (NO) and 2 normally closed (NC) contacts, suitable for switching power circuits up to 440V and 40A. It operates with a 220V AC coil voltage, making it a robust component for motor control and power switching in various industrial settings.

Technical details

• Series: TeSys D
• Number of Poles: 4
• Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
• AC-1 Utilization Category: Yes
• Maximum AC-1 Voltage Rating: <= 440 V
• Maximum AC-1 Current Rating: 40 A
• Coil Voltage: 220 V AC
• Control Circuit Type: AC

Applications & compatibility

This TeSys D contactor is commonly employed in motor control circuits for applications such as pumps, fans, compressors, and general power switching on assembly lines. Its 4-pole configuration makes it ideal for applications requiring the simultaneous switching of multiple circuits or for use in systems with specific wiring requirements, such as reversing motor starters or applications needing auxiliary contacts for control logic.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D258M7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
