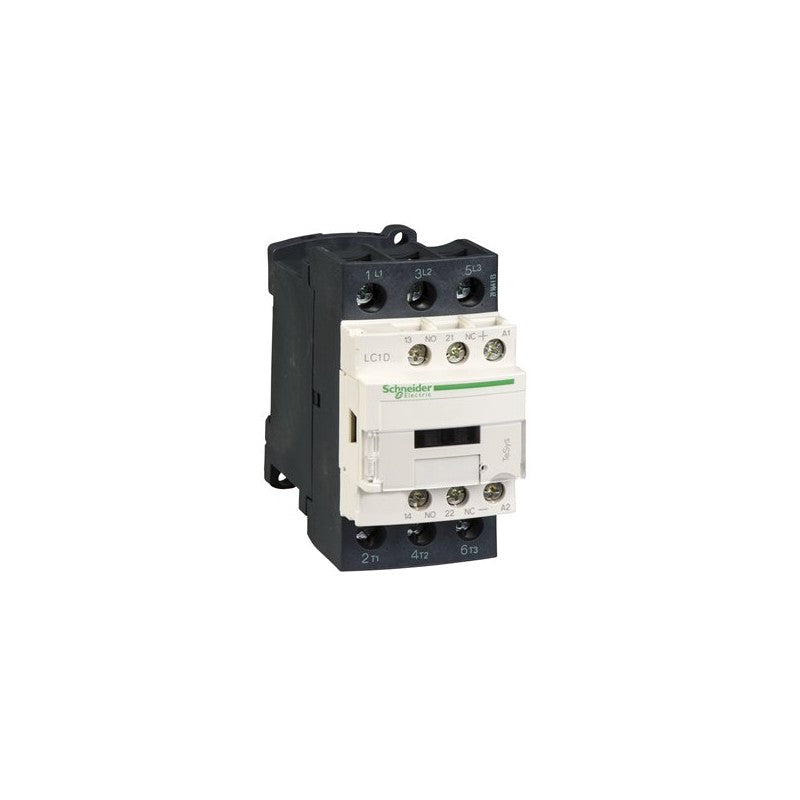

Schneider Electric's TeSys D contactor, model LC1D25EL, is designed for motor control applications requiring robust switching capabilities. This 3-pole contactor features a 25 Amp rating and is suitable for AC-3 duty up to 440 Volts. The LC1D25EL is equipped with a 48 VDC coil, making it compatible with DC control circuits commonly found in industrial automation systems.

Technical details

• Series: TeSys D
• Number of Poles: 3
• Normally Open (NO) Contacts: 3
• AC-3 Utilization Category
• Maximum AC Voltage Rating: <= 440 V
• Continuous Current Rating (AC-3): 25 A
• Coil Voltage: 48 VDC
• Control Circuit Type: DC

Applications & compatibility

The LC1D25EL contactor is widely utilized in motor starter assemblies for controlling three-phase induction motors. It is commonly found in applications such as conveyor systems, pump controls, fan units, and machine tool equipment. Its DC coil voltage makes it ideal for integration into control panels powered by DC control voltages, ensuring reliable motor switching operations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D25EL or contact our technical team for cross-reference assistance with compatible TeSys D components.
