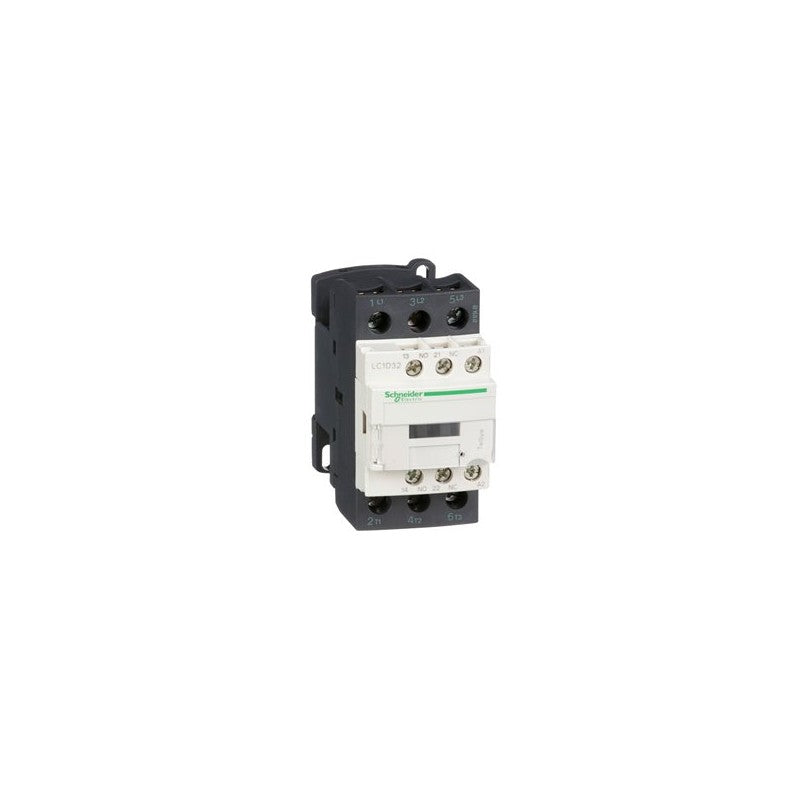

The Schneider Electric LC1D32B7 is a TeSys D series contactor designed for motor control applications. This 3-pole contactor utilizes a 24V AC coil and is rated for AC-3 duty up to 440V and 32A. It is commonly employed in industrial control panels for starting and stopping electric motors.

Technical details

• Series: TeSys D
• Contactor Type: Motor Contactor
• Number of Poles: 3
• Number of Normally Open (NO) Contacts: 3
• Coil Voltage: 24V AC
• AC-3 Utilization Category: Up to 440V
• Rated Operational Current (AC-3, 400V): 32 A
• Terminal Type: Screw Terminals
• Mounting Type: DIN Rail or Screw Mounting
• Dimensions (approximate): Height 85mm, Width 45mm, Depth 98mm (verify against manufacturer datasheet for precise dimensions)

Applications & compatibility

This TeSys D contactor is suitable for use in a wide range of industrial automation systems, including motor starter circuits for pumps, fans, compressors, and conveyors. It is compatible with standard control systems and can be integrated into existing motor control centers.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D32B7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
