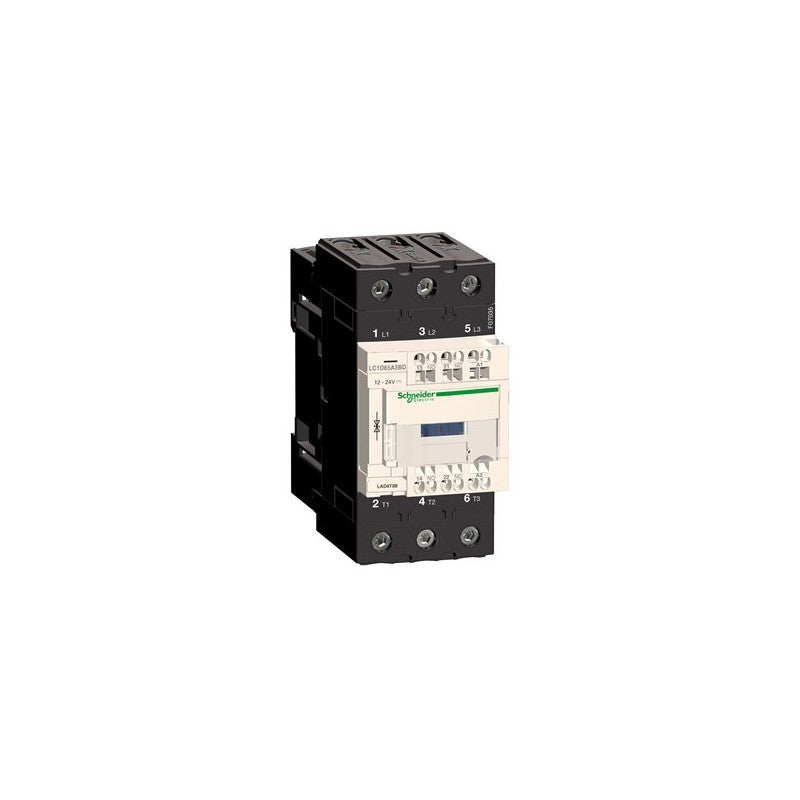

Designed for robust motor control applications, the Schneider Electric LC1D65A3D7 is a TeSys D series 3-pole contactor. This contactor is rated for AC-3 duty and supports voltages up to 440V, handling a continuous current of 65A. Its coil operates on 42V AC at either 50Hz or 60Hz, making it suitable for a wide range of industrial power systems.

Technical details

• Series: TeSys D
• Configuration: 3 Pole (3 Normally Open contacts)
• AC-3 Utilization Category: Suitable for switching squirrel cage motors and other three-phase motors in normal operating conditions.
• Maximum AC-3 Voltage Rating: ≤ 440 V
• Continuous Current Rating (AC-3): 65 A
• Coil Voltage: 42 V AC
• Coil Frequency: 50/60 Hz
• Terminal Type: Screw terminals (verify against datasheet for specific configuration)

Applications & compatibility

The LC1D65A3D7 is commonly employed in motor starter assemblies for controlling three-phase induction motors in demanding industrial environments. It is frequently found in applications such as conveyor systems, pump controls, fan units, and general machinery where reliable motor switching is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D65A3D7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
