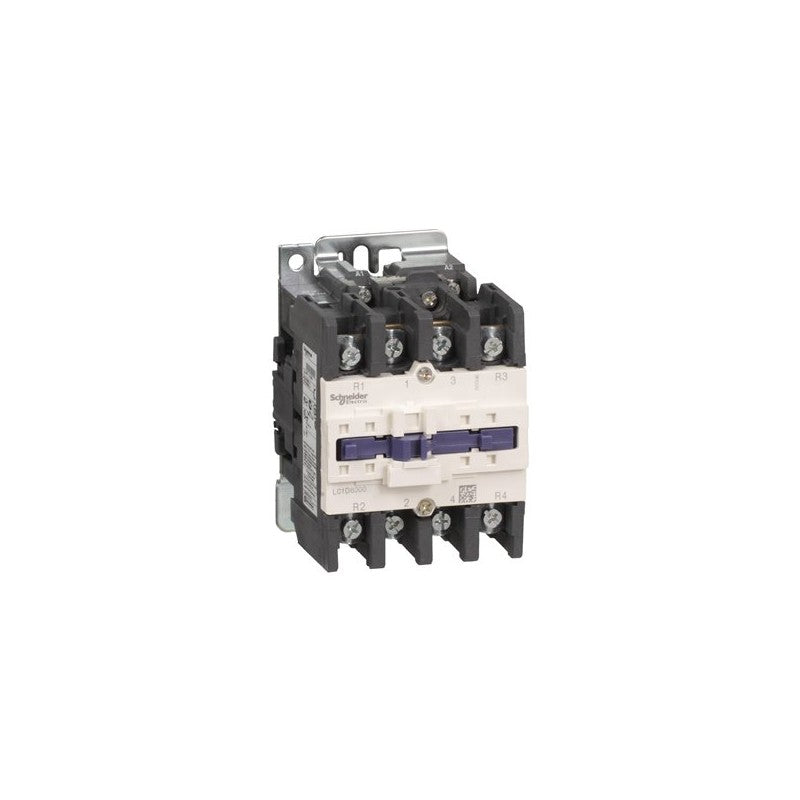

Part of the Schneider Electric TeSys D contactor family, the LC1D80004B7 is a 4-pole contactor designed for AC-1 duty. This unit is rated for circuits up to 440 Volts and handles a continuous current of 125 Amps. It features a 24 Volt AC coil, operating at either 50 or 60 Hertz, making it suitable for a wide range of industrial control applications.

Technical details

• Series: TeSys D
• Configuration: 4-pole (4 Normally Open contacts)
• AC-1 Duty Rating: Suitable for resistive loads
• Maximum Voltage: <= 440 V
• Continuous Current Rating: 125 A
• Coil Voltage: 24 V AC
• Coil Frequency: 50/60 Hz
• Contact Type: Normally Open (NO)

Applications & compatibility

The LC1D80004B7 contactor is commonly employed in motor control circuits, power distribution systems, and general industrial automation tasks. Its robust design and AC-1 rating make it ideal for switching heavy resistive loads found in applications such as heating elements, lighting circuits, and general power switching on manufacturing lines, including packaging machinery and material handling systems.
