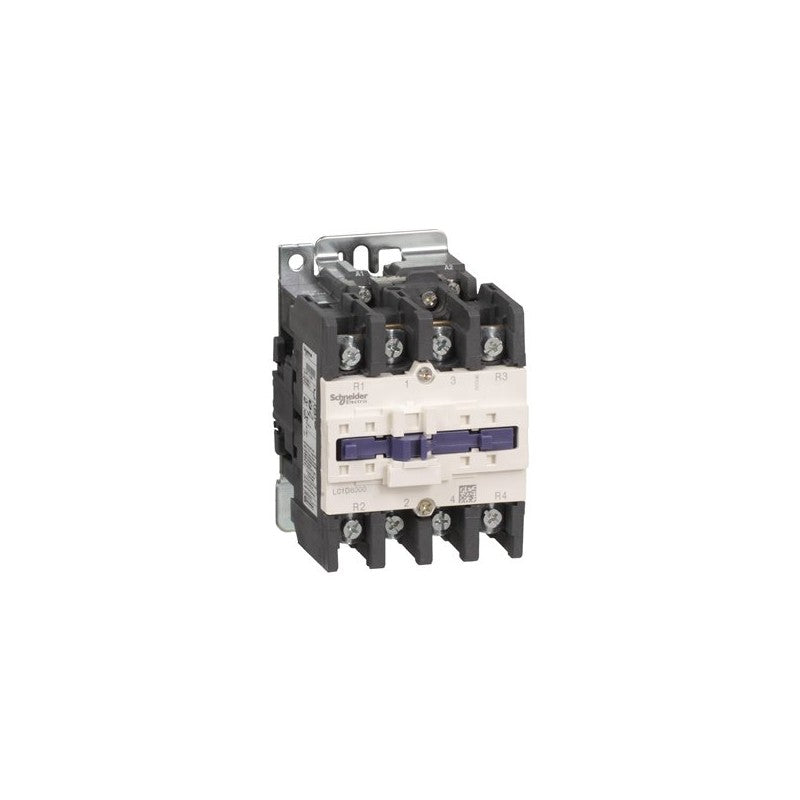

The Schneider Electric LC1D80004E7 is a TeSys D series 4-pole contactor designed for AC-1 duty applications. This contactor is rated for circuits up to 440V and a continuous current of 125A. It features a 48VAC coil for operation at 50/60Hz, making it suitable for a wide range of industrial control panels and motor starting applications.

Technical details

• Series: TeSys D
• Poles: 4
• Contact Configuration: 4 Normally Open (NO)
• AC-1 Duty Rating: Up to 440V, 125A
• Coil Voltage: 48VAC
• Coil Frequency: 50/60 Hz
• Terminal Type: Screw terminals
• Mounting Type: DIN rail or panel mount

Applications & compatibility

This TeSys D contactor is commonly employed in motor control circuits for applications such as conveyor systems, pump controls, and HVAC systems. Its robust design and high current rating make it ideal for switching non-inductive loads in industrial environments. Ensure compatibility with your specific control voltage and load requirements by consulting the manufacturer's datasheet.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D80004E7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
