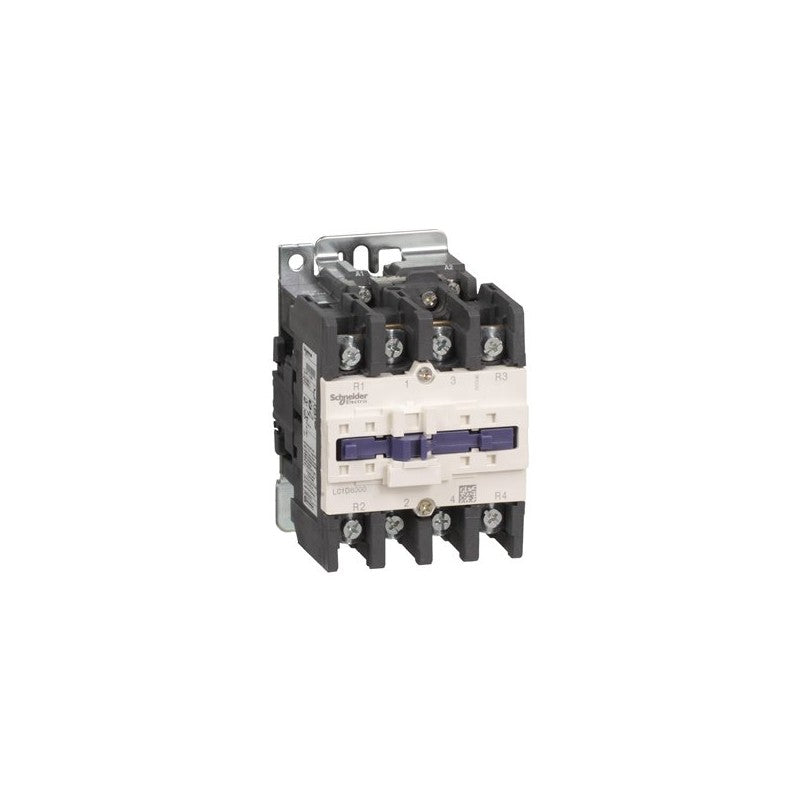

Schneider Electric's TeSys D contactor, model LC1D80004U7, is a 4-pole device designed for AC-1 duty applications. This contactor is rated for a maximum voltage of 440V and a continuous current of 125A, making it suitable for controlling high-power motor loads and resistive heating circuits. The integrated coil operates on 240V AC at either 50Hz or 60Hz, ensuring broad compatibility with standard industrial power supplies.

Technical details

• Series: TeSys D
• Configuration: 4-pole (4 Normally Open contacts)
• AC-1 Duty Rating: Up to 440V, 125A
• Coil Voltage: 240V AC
• Coil Frequency: 50/60 Hz
• Contact Type: Normally Open (NO)
• Mounting Type: DIN rail or panel mount (verify mounting details against manufacturer datasheet)
• Terminal Type: Screw terminals (verify terminal size and type against manufacturer datasheet)

Applications & compatibility

The LC1D80004U7 is commonly employed in industrial control panels for managing power to large motors, heating elements, and lighting systems. Its robust design and high current rating make it ideal for applications within manufacturing facilities, such as on packaging lines, conveyor systems, and in HVAC control systems. This contactor is designed to integrate seamlessly into existing TeSys D control architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D80004U7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
