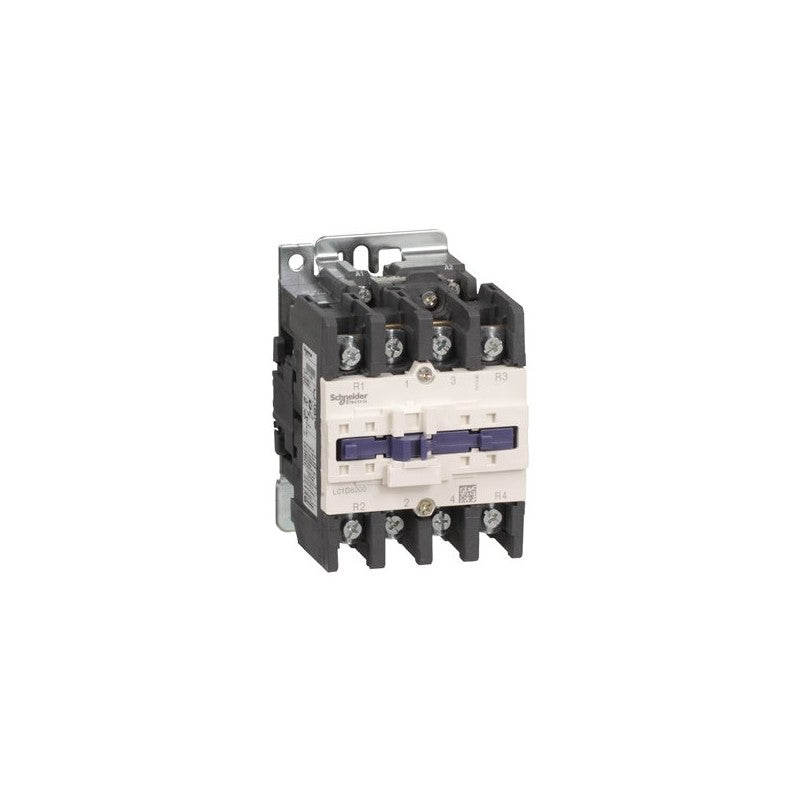

The Schneider Electric LC1D80008P7 is a TeSys D series 4-pole contactor designed for AC-1 and AC-3 duty in demanding industrial environments. This contactor is engineered to manage power circuits for motors and resistive loads, commonly found in control panels for machinery and building automation systems.

Technical details

• Series: TeSys D
• Poles: 4 (2 Normally Open + 2 Normally Closed)
• AC-1 Rating (<= 440V): 125 A
• Coil Voltage: 230 V AC
• Coil Frequency: 50/60 Hz
• AC-3 Rating (<= 440V): 80 A (This is inferred from the LC1D80 part of the number, indicating an 80A AC-3 rating. Buyers should verify against the datasheet.)
• Terminal Type: Screw terminals
• Mounting Type: DIN rail or panel mount

Applications & compatibility

This TeSys D contactor is suitable for controlling and switching power to three-phase motors, heating circuits, and lighting systems. It is frequently integrated into control systems for packaging machinery, material handling equipment, HVAC systems, and pump controls where reliable switching of loads up to 80A (AC-3) is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D80008P7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
