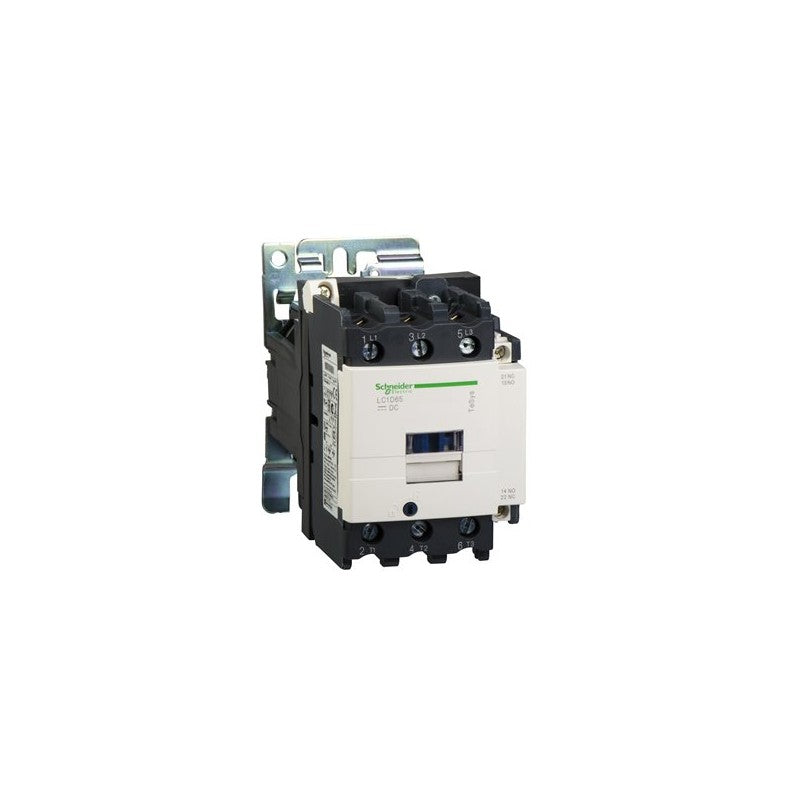

The Schneider Electric TeSys D LC1D806BW is a 3-pole contactor designed for AC-3 duty, suitable for switching motor loads up to 440V. This contactor features a 24V DC wide-range coil, enabling flexible control voltage integration within industrial automation systems. It is commonly employed in motor control circuits for applications requiring reliable switching of medium to heavy loads.

Technical details

• Series: TeSys D
• Contactor Type: Power Contactor
• Number of Poles: 3
• Normally Open (NO) Contacts: 3
• AC-3 Utilization Category: Suitable for switching squirrel cage motors and other three-phase motors under normal operating conditions.
• Maximum AC-3 Voltage Rating: <= 440 V
• Continuous Current Rating (AC-3): 80 A
• Coil Voltage: 24 V DC (wide range)

Applications & compatibility

This TeSys D contactor is engineered for use in motor control centers, pump control systems, and fan control applications across various industries. It is compatible with standard control systems and can be integrated into panel builds for machinery such as packaging equipment, material handling systems, and HVAC units.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LC1D806BW or contact our technical team for cross-reference assistance with compatible TeSys D components.
