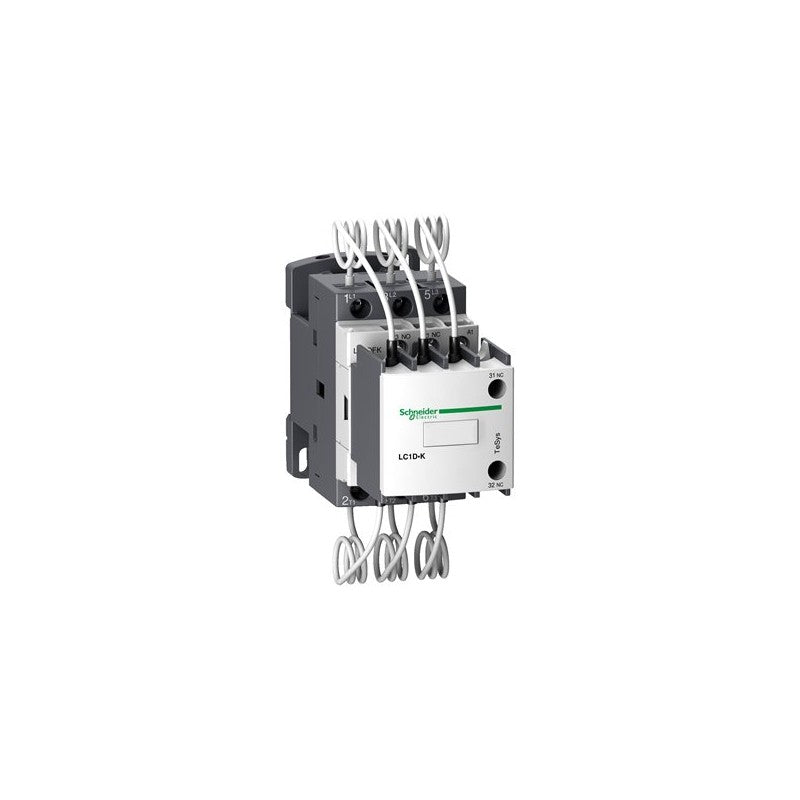

Schneider Electric's TeSys D series capacitor contactor, model LC1DFKE7, is engineered for robust power factor correction applications. This contactor is specifically designed to switch capacitor banks, ensuring optimal power system efficiency. It operates with a 48 V AC coil voltage, compatible with standard control power supplies found in many industrial automation systems.

Technical details

• Series: TeSys D
• Product Type: Capacitor Contactor
• Rated Power (Capacitor Bank): 12.5 kVAR at 400 V/50 Hz
• Coil Voltage: 48 V AC
• Coil Frequency: 50/60 Hz
• Contact Configuration: Typically includes auxiliary contacts for control and signaling, though specific configuration requires datasheet verification.
• Mounting Type: DIN rail or screw mounting, refer to datasheet for specific dimensions and mounting options.
• Terminal Type: Screw terminals for power and control connections, verify specific terminal sizes and torque requirements from the manufacturer's documentation.

Applications & compatibility

The LC1DFKE7 is commonly deployed in industrial facilities to improve power factor and reduce reactive power charges. It is suitable for integration into motor control centers (MCCs) and dedicated power factor correction panels. This contactor is designed to work with standard AC power systems and control circuits, ensuring broad compatibility with existing electrical infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DFKE7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
