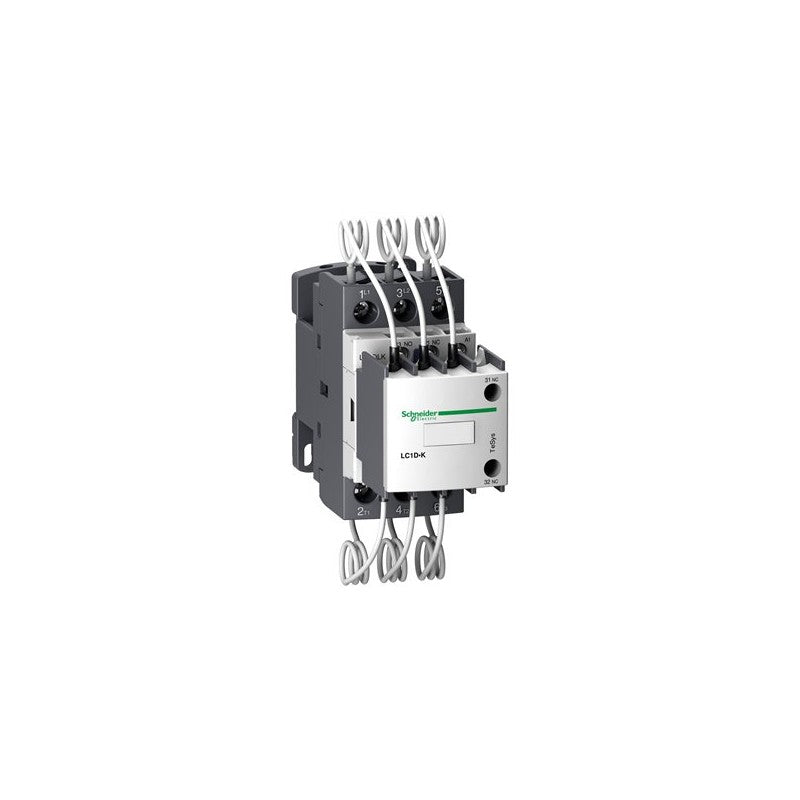

The Schneider Electric LC1DLKE7 is a TeSys D series capacitor contactor designed for motor control and power switching applications. This contactor is specifically engineered for capacitor bank switching, providing reliable operation in power factor correction systems. Its robust construction ensures durability in demanding industrial environments.

Technical details

• Series: TeSys D
• Coil Voltage: 48 V AC (50/60 Hz)
• Rated Power (Capacitor): 20 kVAR at 400 V / 50 Hz
• Contact Configuration: Typically 3 Normally Open (NO) poles for power switching, with auxiliary contacts for control circuits (specific auxiliary contact configuration not detailed in provided information, recommend verifying datasheet).
• Mounting Type: DIN rail or screw mounting (verify datasheet for specific options).
• Terminal Type: Screw terminals for power and control connections (verify datasheet for specific types).
• Operating Temperature Range: Standard industrial operating temperatures (verify datasheet for precise range).
• Enclosure Rating: Standard industrial protection (verify datasheet for specific IP rating).

Applications & compatibility

This capacitor contactor is commonly utilized in industrial power distribution systems for power factor correction. It is suitable for integration into control panels for manufacturing plants, commercial buildings, and utility substations. The LC1DLKE7 is designed to switch capacitor banks, helping to improve the power factor and reduce energy costs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DLKE7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
