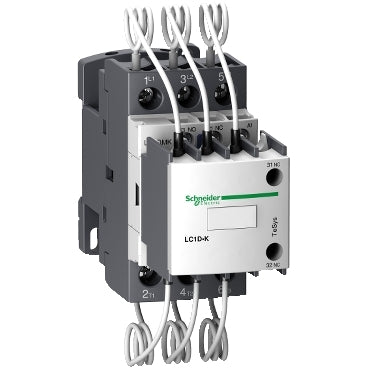

The Schneider Electric TeSys LC1D.K capacitor duty contactor is engineered for demanding motor control applications. This 3-pole contactor is specifically designed for switching capacitor banks, offering robust performance in power factor correction systems. Its construction ensures reliable operation under the high inrush currents characteristic of capacitor switching.

Technical details

• Series: TeSys LC1D.K
• Type: Capacitor Duty Contactor
• Poles: 3
• Rated Power (Capacitive Load): 25 kVAR
• Coil Voltage: 415 V AC to 440 V AC
• Contact Configuration: 3 Normally Open (NO) main contacts
• Mounting Type: DIN rail or panel mount
• Terminal Type: Screw terminals
• Operating Temperature Range: -5°C to +60°C

Applications & compatibility

This contactor is ideal for use in industrial power factor correction panels and motor control centers. It is commonly found in applications requiring automatic adjustment of reactive power to optimize energy efficiency, such as on manufacturing floors, in data centers, and within large commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LC1DMKR7 or contact our technical team for cross-reference assistance with compatible TeSys components.
