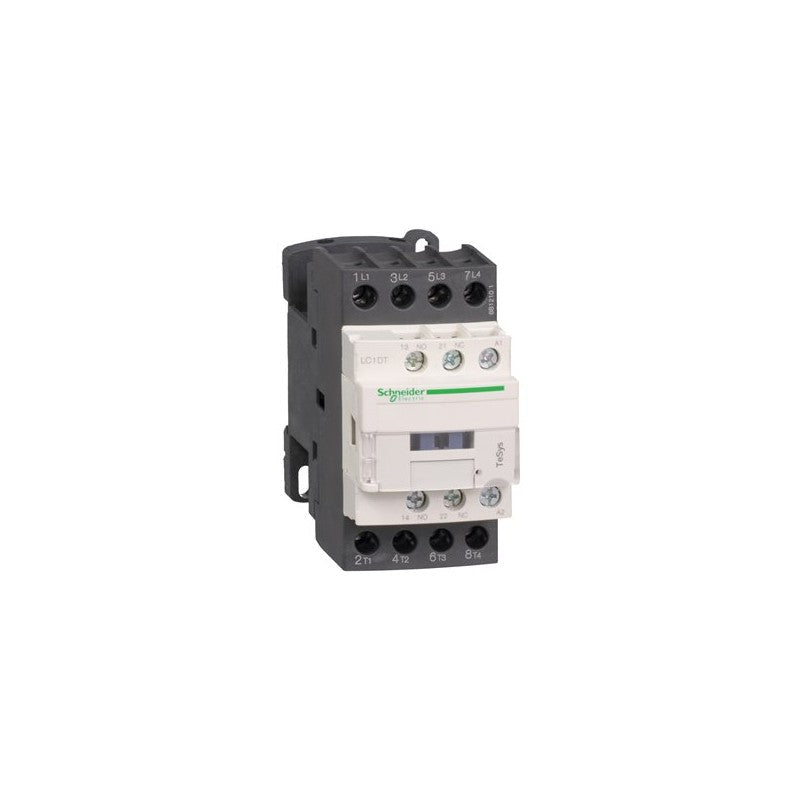

Part of the Schneider Electric TeSys D contactor family, the LC1DT20E7 is a 4-pole contactor designed for AC-1 duty applications. This contactor is rated for a maximum of 440 Volts and handles a continuous current of 20 Amps. It features a 48 Volt AC coil operating at 50/60 Hz, making it suitable for a wide range of industrial control panels and motor starting circuits.

Technical details

• Series: TeSys D
• Number of Poles: 4
• Contact Configuration: 4 Normally Open (NO)
• AC-1 Utilization Category
• Maximum AC-1 Voltage Rating: ≤ 440 V
• Continuous Current Rating (AC-1): 20 A
• Coil Voltage: 48 V AC
• Coil Frequency: 50/60 Hz

Applications & compatibility

The Schneider Electric LC1DT20E7 contactor is commonly employed in industrial automation systems for switching power circuits. Its robust design and specific AC-1 rating make it ideal for controlling resistive loads found in heating circuits, lighting systems, and general power distribution applications within manufacturing facilities, process plants, and building automation systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT20E7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
