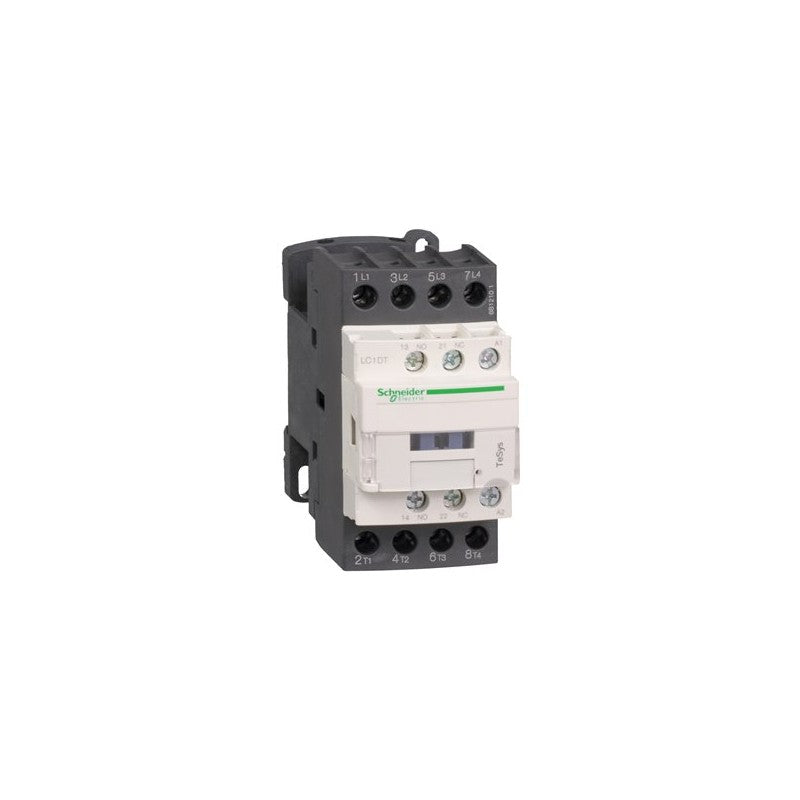

The Schneider Electric TeSys D LC1DT20M7 is a 4-pole contactor designed for AC-1 duty applications. This contactor is rated for a maximum of 440 Volts and a continuous current of 20 Amps, making it suitable for controlling general-purpose loads. Its robust construction and reliable operation are characteristic of the TeSys D series, a widely adopted line in industrial control systems.

Technical details

• Series: TeSys D
• Configuration: 4 Poles (4 Normally Open - NO)
• AC-1 Duty Rating: Up to 440 V, 20 A
• Coil Voltage: 220 V AC (50/60 Hz)
• Contact Type: Power Contacts
• Mounting Type: DIN Rail or Screw Mount (verify mounting hardware compatibility with manufacturer datasheet)
• Terminal Type: Screw Terminals (verify wire gauge compatibility with manufacturer datasheet)
• Enclosure Rating: Typically IP20 for open components (verify specific enclosure details with manufacturer datasheet)

Applications & compatibility

This TeSys D contactor is commonly employed in motor control circuits, lighting control systems, and general power switching applications within manufacturing facilities. It is compatible with various control panels and automation systems that utilize standard AC control voltages and require reliable switching for loads up to 20 Amps under AC-1 conditions. Applications include conveyor systems, pump controls, and HVAC systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT20M7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
