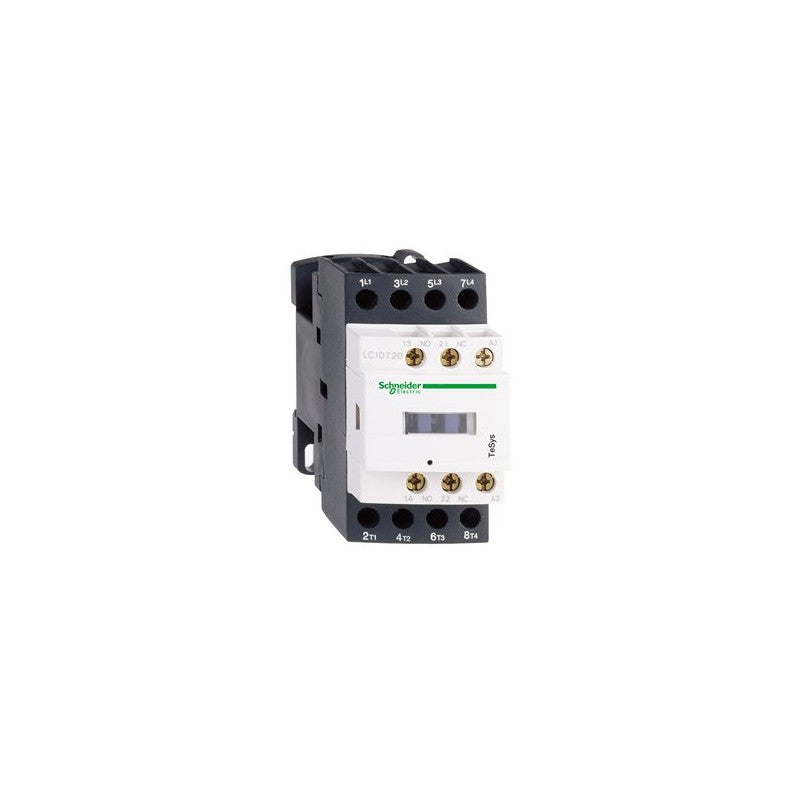

The Schneider Electric TeSys D LC1DT20R7 is a 4-pole contactor designed for AC-1 duty applications. This contactor is rated for circuits up to 440 Volts and a continuous current of 20 Amps. It features a 440 Volt AC coil operating at 50/60 Hz, making it suitable for a wide range of industrial control panels and motor starting applications.

Technical details

• Series: TeSys D
• Configuration: 4 Poles (4 Normally Open - NO)
• AC-1 Duty Rating: Up to 440V, 20A
• Coil Voltage: 440V AC
• Coil Frequency: 50/60 Hz
• Contact Type: Power Contacts
• Mounting: DIN rail or panel mount (verify mounting hardware compatibility with manufacturer datasheet)
• Terminal Type: Screw terminals (verify wire gauge compatibility with manufacturer datasheet)

Applications & compatibility

This TeSys D contactor is commonly employed in industrial automation systems for switching power circuits, particularly for resistive loads or as a main contactor for smaller motor control circuits. It is compatible with various control systems and can be integrated into motor control centers (MCCs), pump control panels, and HVAC systems where reliable AC-1 switching is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT20R7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
