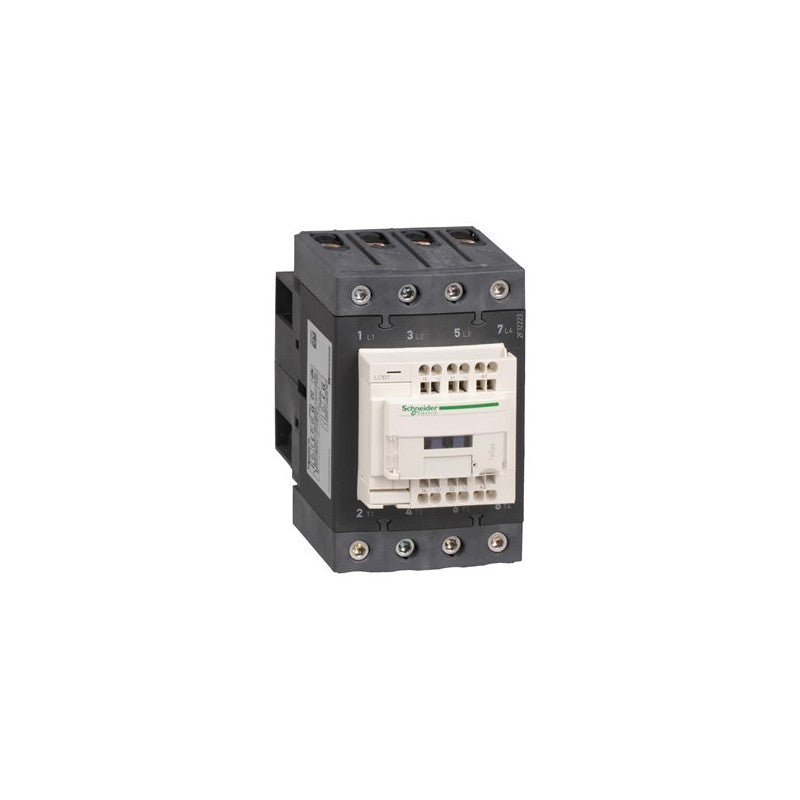

Part of the Schneider Electric TeSys D contactor family, the LC1DT80A3B7 is a 4-pole contactor designed for AC-1 duty. This contactor is rated for a maximum of 440 Volts and handles up to 80 Amps, making it suitable for controlling general-purpose loads in industrial environments. Its 24 Volt AC coil operates at 50/60 Hz, ensuring compatibility with standard control power circuits.

Technical details

• Series: TeSys D
• Configuration: 4-pole (4 Normally Open - NO contacts)
• AC-1 Duty Rating: Up to 80 Amps
• Maximum Voltage: 440 Volts AC
• Coil Voltage: 24 Volts AC
• Coil Frequency: 50/60 Hz
• Contact Type: Normally Open (NO)
• Control Circuit Type: AC

Applications & compatibility

The LC1DT80A3B7 is commonly employed in motor control applications, power distribution systems, and general switching duties within manufacturing facilities. It is designed for use in control panels for machinery such as packaging equipment, conveyor systems, and HVAC units where reliable switching of non-inductive loads is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80A3B7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
