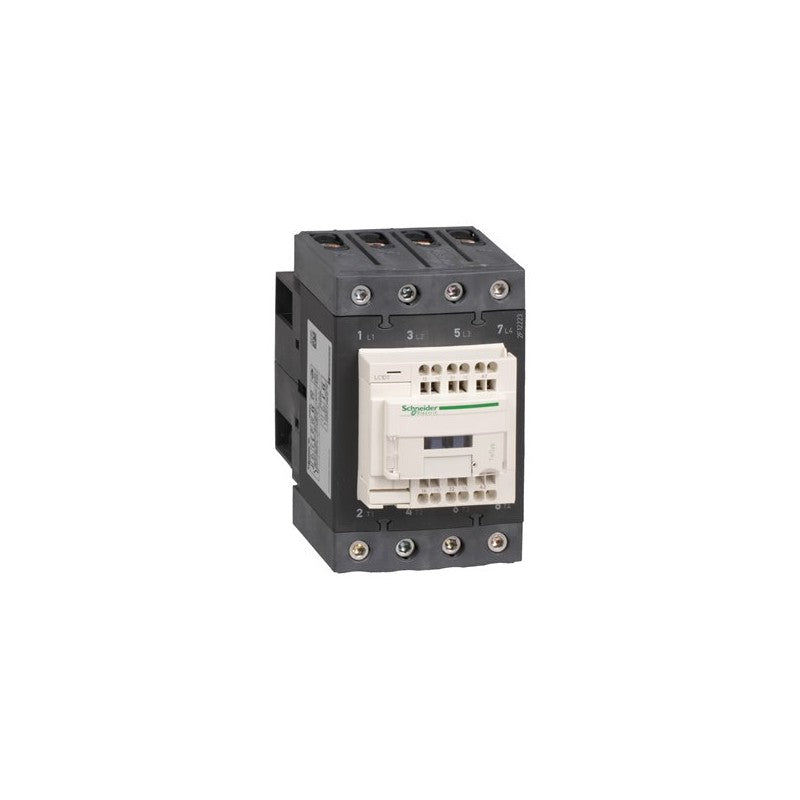

Part of the Schneider Electric TeSys D contactor family, the LC1DT80A3ED is a 4-pole contactor designed for AC-1 duty. This specific model is rated for circuits up to 440V and handles a continuous current of 80A. It features a 48V DC coil, making it suitable for applications requiring direct current control.

Technical details

• Series: TeSys D
• Contactor Type: Power Contactor
• Poles: 4 (4 Normally Open - NO)
• AC-1 Utilization Category: Rated for AC-1 loads
• Voltage Rating: Up to 440V AC
• Current Rating (AC-1): 80A continuous
• Coil Voltage: 48V DC
• Control Circuit Type: DC Coil

Applications & compatibility

The LC1DT80A3ED contactor is commonly employed in motor control circuits and power switching applications within industrial environments. Its robust design and AC-1 rating make it suitable for controlling resistive loads such as heating circuits, lighting banks, and general power distribution systems. This contactor is designed to integrate seamlessly into existing TeSys control systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80A3ED or contact our technical team for cross-reference assistance with compatible TeSys D components.
