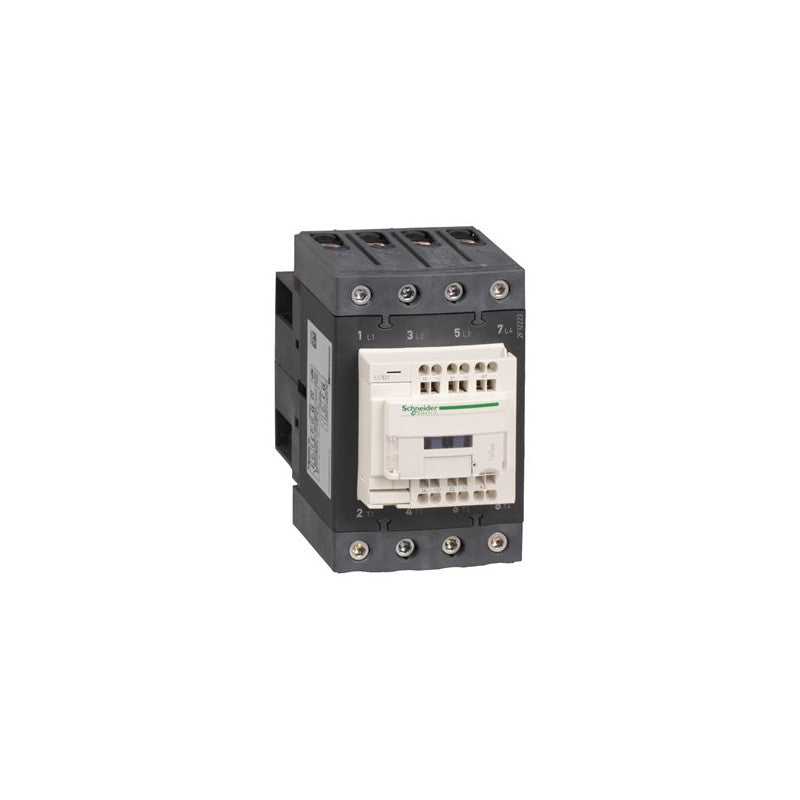

Schneider Electric's TeSys D contactor, model LC1DT80A3JD, is a 4-pole device designed for AC-1 duty applications. This contactor is rated for circuits up to 440V and handles a continuous current of 80A. It features a standard 12V DC coil, making it suitable for integration into various control systems requiring reliable switching of power circuits.

Technical details

• Series: TeSys D
• Number of Poles: 4
• Contact Configuration: 4 Normally Open (NO)
• AC-1 Utilization Category: Suitable for AC-1 duty (general purpose AC loads)
• Maximum AC Voltage Rating: ≤ 440 V
• Continuous Current Rating (AC-1): 80 A
• Coil Voltage: 12 V DC
• Coil Type: Standard DC coil

Applications & compatibility

The LC1DT80A3JD is commonly employed in industrial control panels for switching high-power loads such as heating circuits, lighting systems, and motor control applications where a 4-pole configuration is required. Its robust design and specific AC-1 rating ensure reliable operation in demanding environments found in manufacturing facilities, building automation, and material handling systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80A3JD or contact our technical team for cross-reference assistance with compatible TeSys D components.
