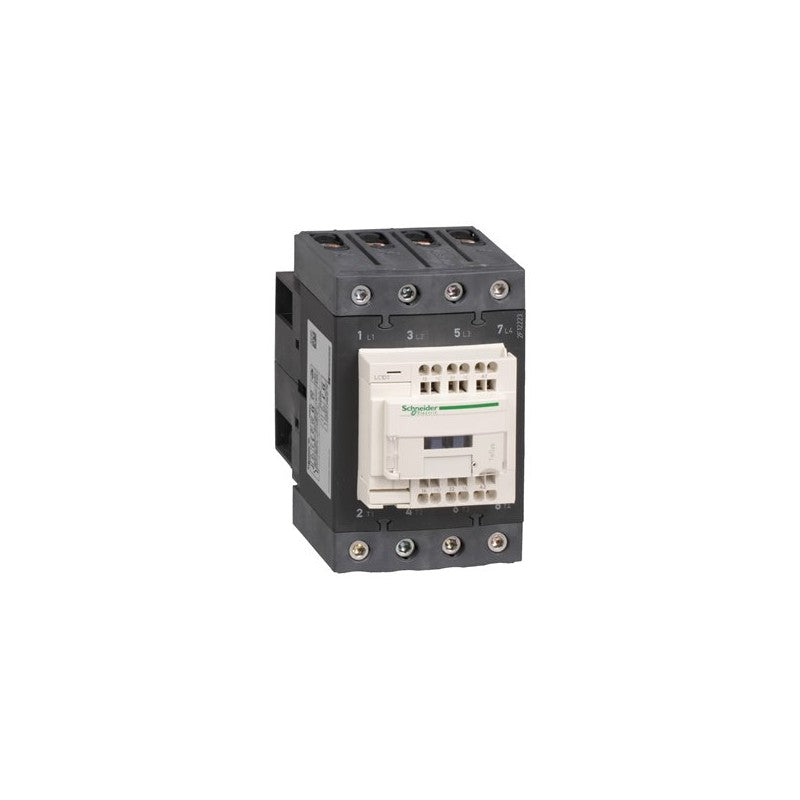

Part of the Schneider Electric TeSys D contactor family, the LC1DT80A3U7 is a 4-pole contactor designed for AC-1 duty applications. This contactor is rated for circuits up to 440V and handles a continuous current of 80A. It features a 240V AC coil for operation at 50/60 Hz, making it suitable for a wide range of industrial control panels and motor starting applications.

Technical details

• Series: TeSys D
• Configuration: 4-Pole (4 Normally Open - NO)
• AC-1 Duty Rating: Up to 440V
• Continuous Current Rating (AC-1): 80A
• Coil Voltage: 240V AC
• Coil Frequency: 50/60 Hz
• Contact Type: Normally Open (NO)
• Terminal Type: Screw Terminals (verify against datasheet for specific configuration)

Applications & compatibility

The LC1DT80A3U7 is commonly employed in general industrial control systems, including motor control circuits for pumps, fans, and compressors, as well as in power distribution and lighting control applications. Its robust design and AC-1 rating make it a reliable choice for switching non-inductive loads in manufacturing facilities, processing plants, and building automation systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80A3U7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
