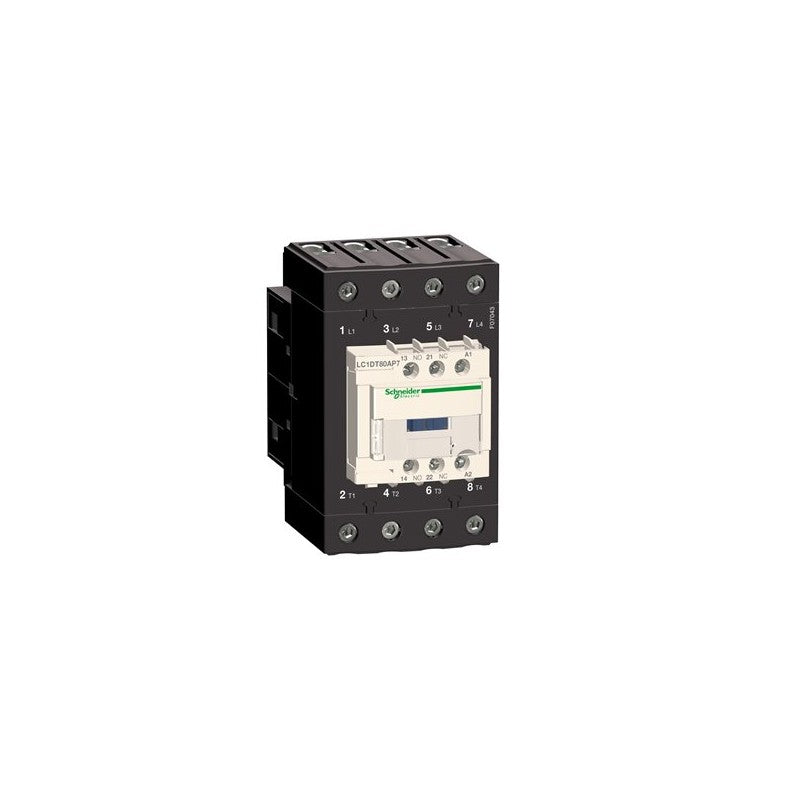

The Schneider Electric TeSys D LC1DT80AED is a 4-pole contactor designed for AC-1 duty applications. This contactor features 4 normally open (NO) contacts and is rated for circuits up to 440V and 80A. It is equipped with a standard 48V DC coil, making it suitable for integration into various control systems requiring robust switching capabilities.

Technical details

• Series: TeSys D
• Number of Poles: 4
• Contact Configuration: 4 Normally Open (NO)
• AC-1 Utilization Category: Yes
• Maximum AC Voltage Rating: <= 440 V
• Continuous Current Rating (AC-1): 80 A
• Coil Voltage: 48 V DC
• Control Circuit Type: DC

Applications & compatibility

This TeSys D contactor is commonly employed in motor control circuits, power distribution systems, and general industrial automation applications. Its robust design and specific AC-1 rating make it ideal for switching non-inductive loads such as resistive heaters or lighting circuits, as well as for use as a main switch in smaller motor starters.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80AED or contact our technical team for cross-reference assistance with compatible TeSys D components.
