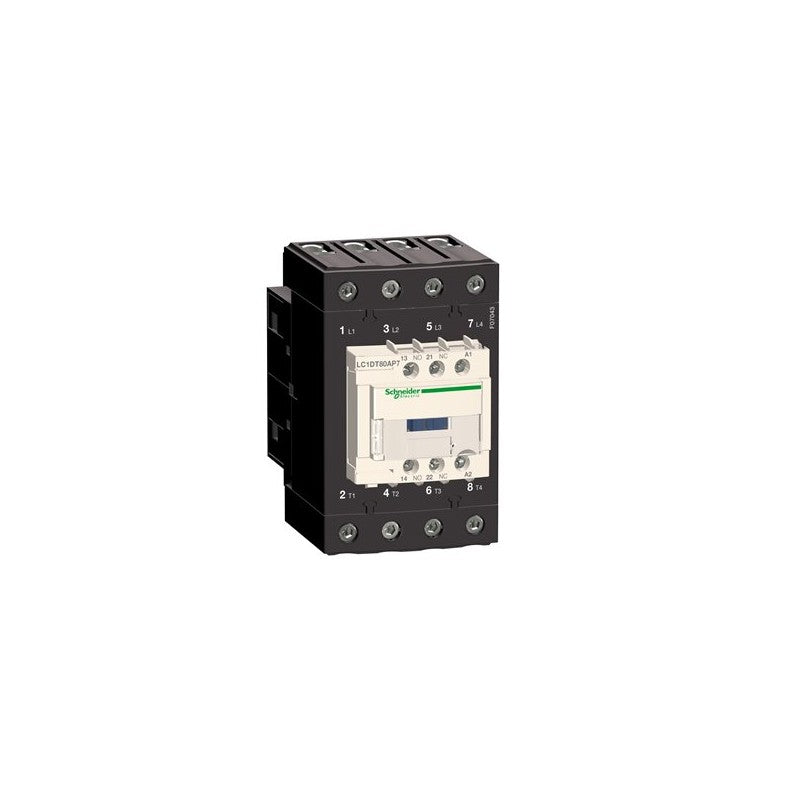

Part of the Schneider Electric TeSys D contactor family, the LC1DT80AF7 is a 4-pole contactor designed for AC-1 duty. This contactor is rated for a maximum of 440 Volts and 80 Amperes, making it suitable for switching heavy inductive loads in industrial control panels. Its robust construction ensures reliable operation in demanding environments.

Technical details

• Series: TeSys D
• Configuration: 4 Pole (4 Normally Open - NO)
• AC-1 Utilization Category: Rated for AC-1 duty
• Maximum Voltage Rating: <= 440 V
• Current Rating (AC-1): 80 A
• Coil Voltage: 110 V AC
• Coil Frequency: 50/60 Hz
• Contact Type: 4 Normally Open (NO)

Applications & compatibility

The LC1DT80AF7 is commonly employed in motor control circuits, power distribution systems, and general industrial automation applications. It is compatible with various control systems requiring a robust 4-pole switching solution for AC-1 loads. Typical installations include pump controls, fan systems, and lighting circuits where reliable switching of non-motor loads is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80AF7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
