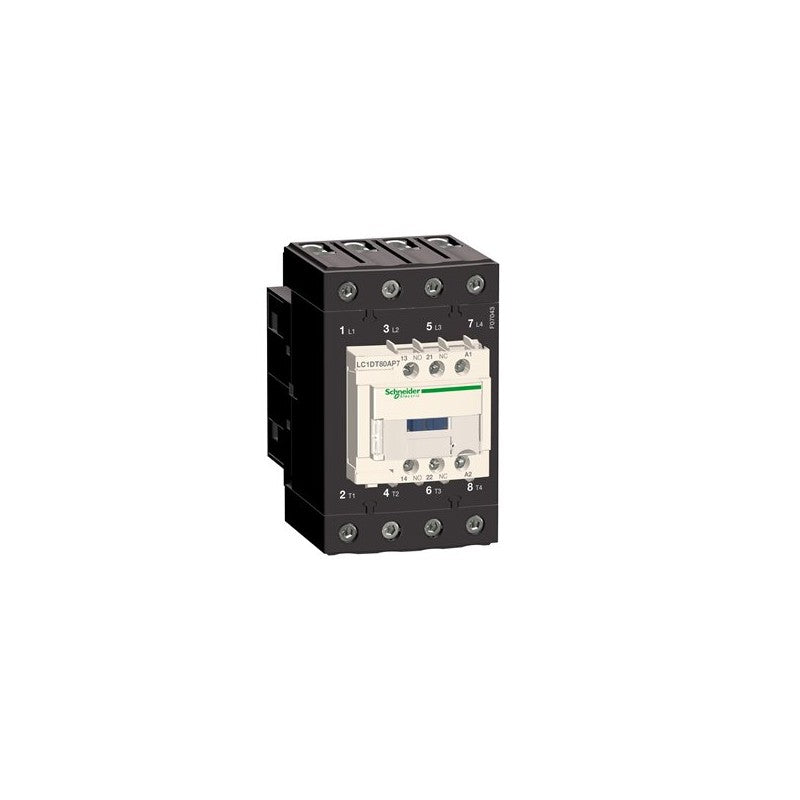

The Schneider Electric TeSys D LC1DT80AM7 is a 4-pole contactor designed for AC-1 duty applications. This contactor is rated for circuits up to 440V and handles a continuous current of 80A. It features a 220V AC coil operating at 50/60 Hz, making it suitable for a wide range of industrial control panels and motor starting applications.

Technical details

• Series: TeSys D
• Configuration: 4 Poles (4 Normally Open - NO)
• AC-1 Utilization Category: Suitable for AC-1 loads (resistive or slightly inductive loads)
• Maximum AC-1 Voltage: <= 440 V
• Continuous Current Rating (AC-1): 80 A
• Coil Voltage: 220 V AC
• Coil Frequency: 50/60 Hz
• Contact Type: 4 Normally Open (NO)

Applications & compatibility

This TeSys D contactor is commonly employed in power distribution systems, motor control circuits, and general industrial automation. It is ideal for switching resistive loads such as heating elements or for applications requiring a high number of normally open contacts for control logic within packaging machinery, material handling systems, and HVAC equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80AM7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
