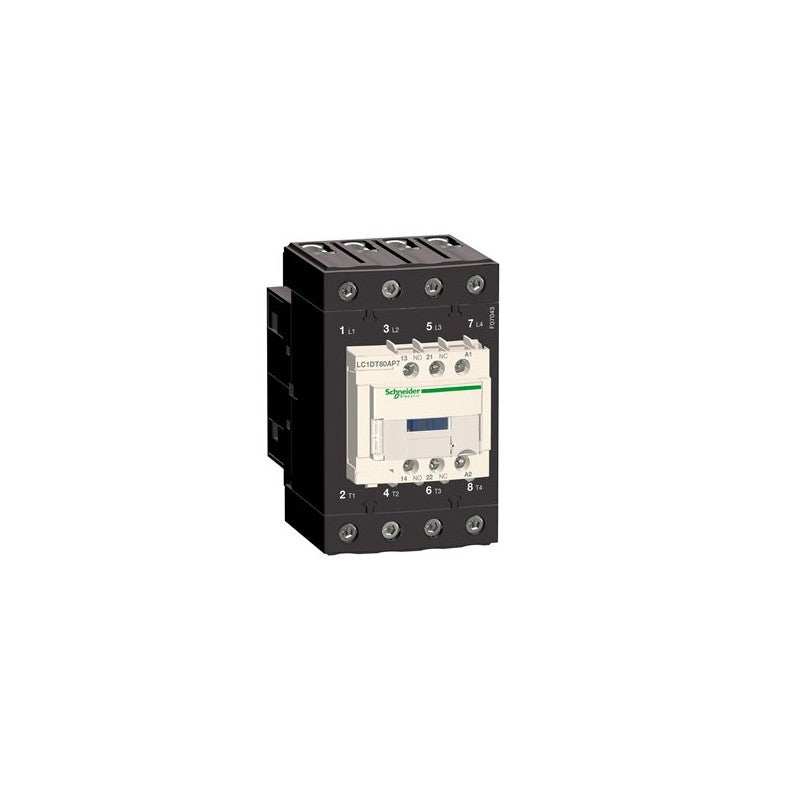

The Schneider Electric TeSys D LC1DT80AN7 is a 4-pole contactor designed for AC-1 duty applications. This contactor features 4 normally open (NO) contacts and is rated for a maximum of 440V AC and 80A. It is commonly employed in motor control and power switching circuits within industrial machinery and automation systems.

Technical details

• Series: TeSys D
• Configuration: 4-Pole (4 Normally Open contacts)
• AC-1 Duty Rating: Up to 80A at <= 440V AC
• Coil Voltage: 415V AC (50/60 Hz)
• Control Circuit Type: AC Coil
• Contact Type: Normally Open (NO)
• Terminal Type: Screw Terminals (verify against datasheet for specific configuration)
• Mounting Type: DIN Rail or Screw Mount (verify against datasheet)

Applications & compatibility

This TeSys D contactor is suitable for controlling and switching power to various industrial loads, including resistive loads in applications such as heating circuits, lighting control, and general power distribution. It is compatible with standard control systems and can be integrated into motor control centers (MCCs) and control panels for packaging machinery, material handling systems, and HVAC equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80AN7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
