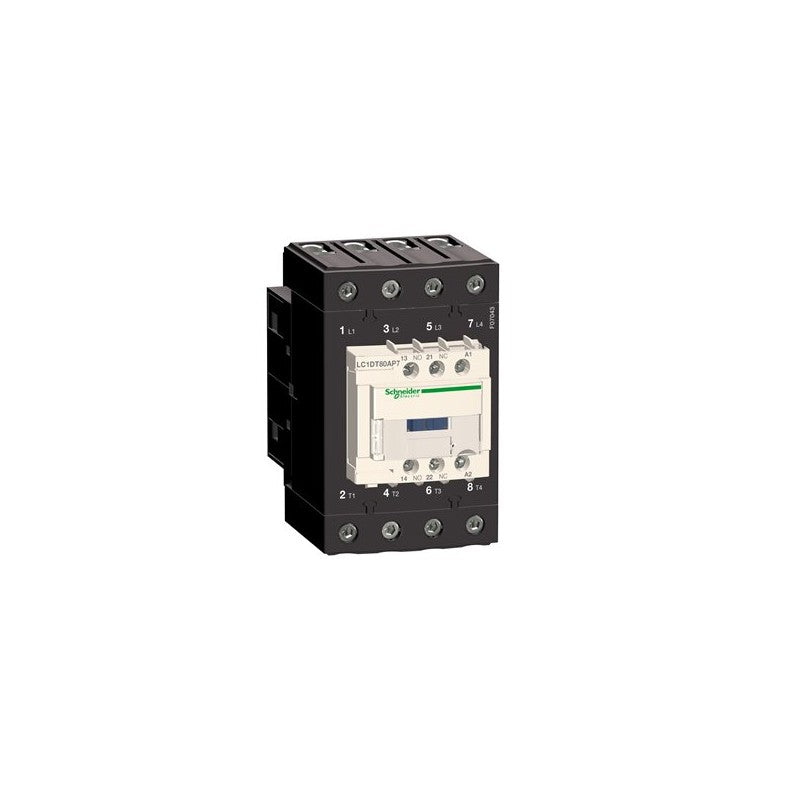

The Schneider Electric TeSys D LC1DT80AP7 is a 4-pole contactor designed for AC-1 duty applications. This contactor is rated for circuits up to 440V and handles a continuous current of 80A. It features a 230V AC coil operating at 50/60 Hz, making it suitable for a wide range of industrial control panels and motor starting applications.

Technical details

• Series: TeSys D
• Configuration: 4 Poles (4 Normally Open - NO)
• AC-1 Utilization Category: Suitable for AC-1 loads (resistive or slightly inductive loads)
• Maximum AC-1 Voltage: <= 440 V
• Continuous Current Rating (AC-1): 80 A
• Coil Voltage: 230 V AC
• Coil Frequency: 50/60 Hz
• Contact Type: Power contacts

Applications & compatibility

This TeSys D contactor is commonly employed in motor control circuits for applications such as conveyor systems, pump controls, and HVAC systems. Its robust design and high current rating make it a reliable component for switching heavy loads in manufacturing environments, including food and beverage processing, material handling, and general industrial machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80AP7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
