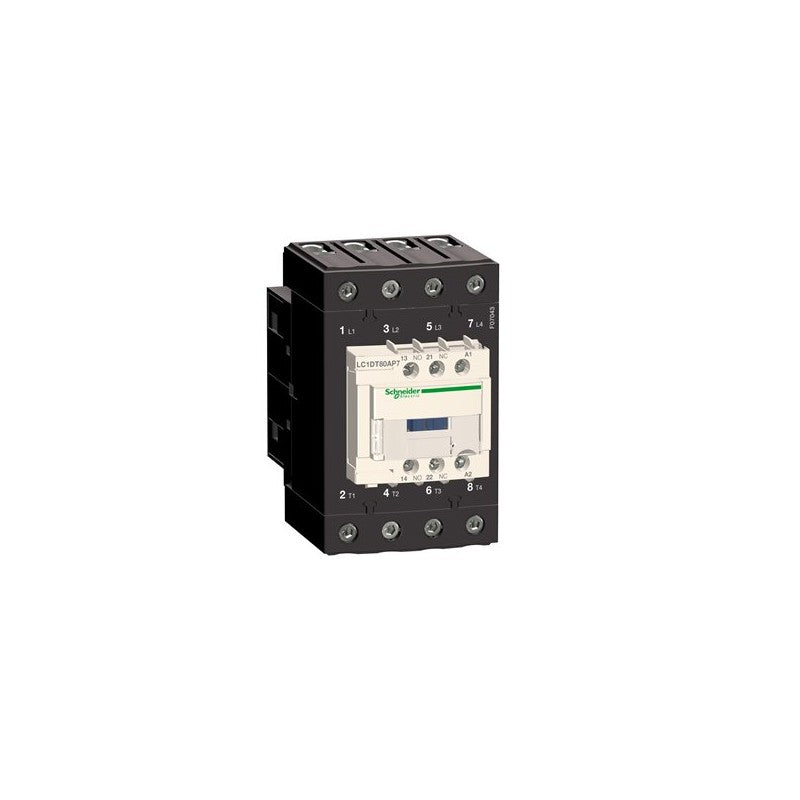

The Schneider Electric LC1DT80ASD is a TeSys D series 4-pole contactor designed for AC-1 duty applications. This contactor is rated for circuits up to 440V and handles a continuous current of 80A. It features a 72V DC coil, making it suitable for integration into DC control circuits within industrial automation systems.

Technical details

• Series: TeSys D
• Poles: 4
• Contact Configuration: 4 Normally Open (NO)
• AC-1 Duty Rating: Up to 440V, 80A
• Coil Voltage: 72V DC
• Terminal Type: Screw terminals
• Mounting Type: DIN rail or panel mount
• Enclosure Rating: IP20 (finger-safe)

Applications & compatibility

This TeSys D contactor is commonly employed in motor control circuits, power distribution panels, and general industrial switching applications. It is compatible with various control systems requiring a robust 4-pole switching solution for loads up to 80A under AC-1 conditions. Applications include HVAC systems, pump controls, and lighting circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DT80ASD or contact our technical team for cross-reference assistance with compatible TeSys D components.
