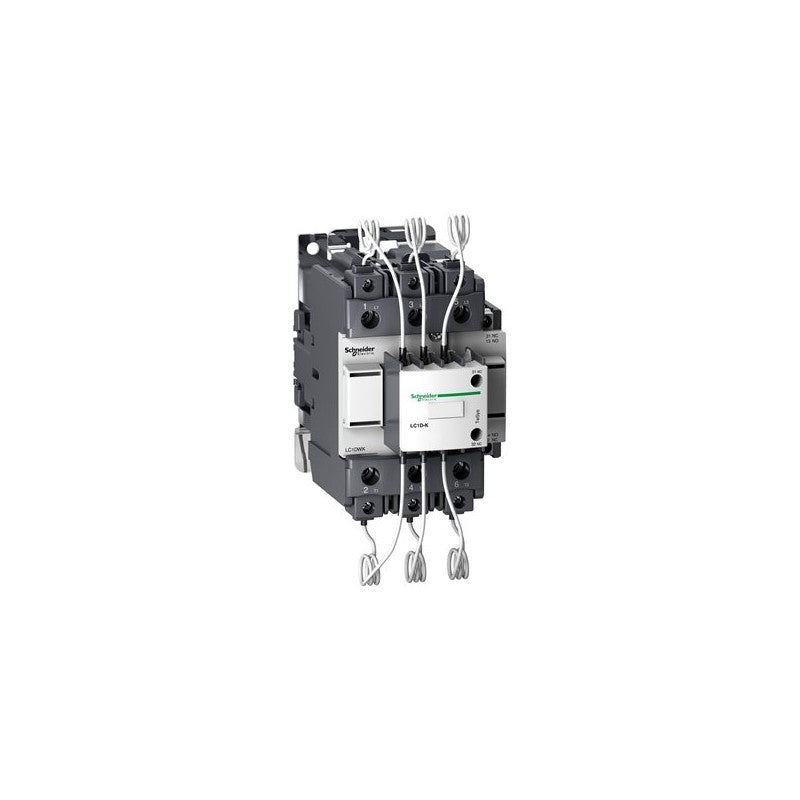

The Schneider Electric TeSys D LC1DWK12F7 is a capacitor contactor designed for power factor correction applications. This specific unit is rated for 63 kVAR at 400 V/50 Hz and features a 110 V AC coil operating at 50/60 Hz. It is a key component in systems requiring precise control of capacitor banks to maintain optimal power quality.

Technical details

• Series: TeSys D
• Product Type: Capacitor Contactor
• Rated Power (Capacitive Load): 63 kVAR at 400 V/50 Hz
• Coil Voltage: 110 V AC
• Coil Frequency: 50/60 Hz
• Contact Configuration: Typically 3 Normally Open (NO) poles for switching capacitor banks; verify with datasheet for exact configuration.
• Mounting Type: DIN rail or screw mounting; verify with datasheet.
• Terminal Type: Screw terminals; verify with datasheet.
• Operating Temperature Range: Standard industrial operating temperatures; verify with datasheet for precise range.

Applications & compatibility

This TeSys D capacitor contactor is commonly employed in industrial facilities to manage reactive power and improve the power factor of electrical systems. It is integral to motor control centers, switchgear, and power distribution panels found in manufacturing plants, data centers, and commercial buildings to reduce energy costs and prevent voltage sags.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1DWK12F7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
