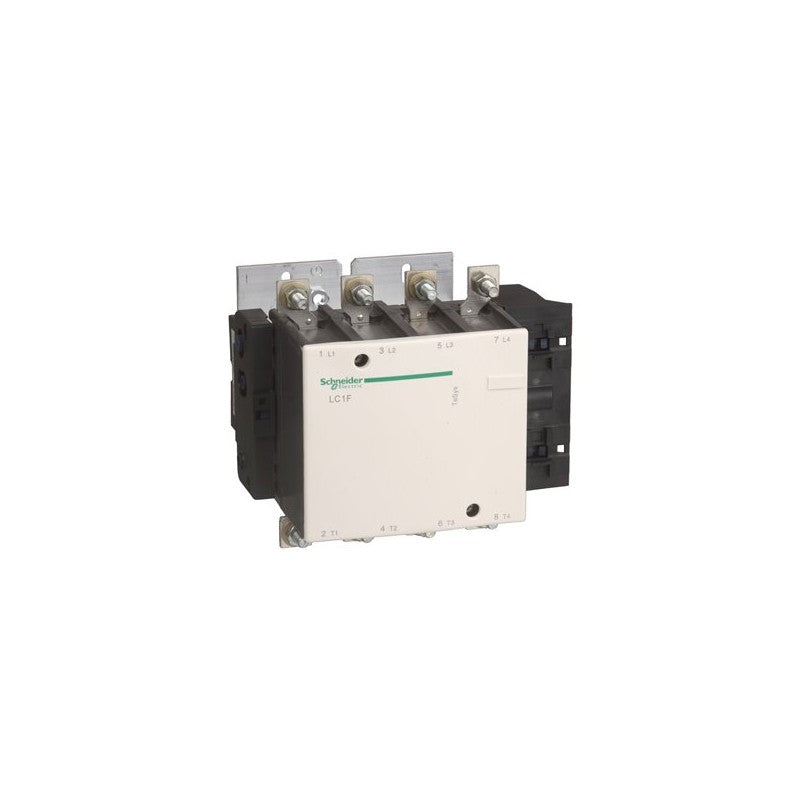

The Schneider Electric LC1F1504 is a TeSys F series contactor designed for heavy-duty power switching applications. This 4-pole contactor features four normally open (NO) contacts, making it suitable for AC-1 duty up to 440V and 250A. It is engineered for robust performance in demanding industrial environments.

Technical details

• Series: TeSys F
• Contact Configuration: 4 Pole (4 Normally Open - NO)
• AC-1 Duty Rating: Up to 440V, 250A
• Coil Voltage Compatibility (without integrated coil):
• LX9: 24...575V AC at 40/400Hz
• LX4: 24...460V DC
• LXE: 100...250V AC at 50/60Hz or 100-380V DC
• Mounting Type: Panel mount
• Terminal Type: Screw terminals
• Standards Compliance: IEC 60947-4-1
• Insulation Voltage: 1000V (IEC 60947-1)

Applications & compatibility

This TeSys F contactor is commonly employed in motor control circuits, power distribution systems, and load shedding applications within industries such as manufacturing, material handling, and process control. It is designed to reliably switch high inductive loads and is compatible with various control systems requiring robust power switching capabilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1F1504 or contact our technical team for cross-reference assistance with compatible TeSys F components.
