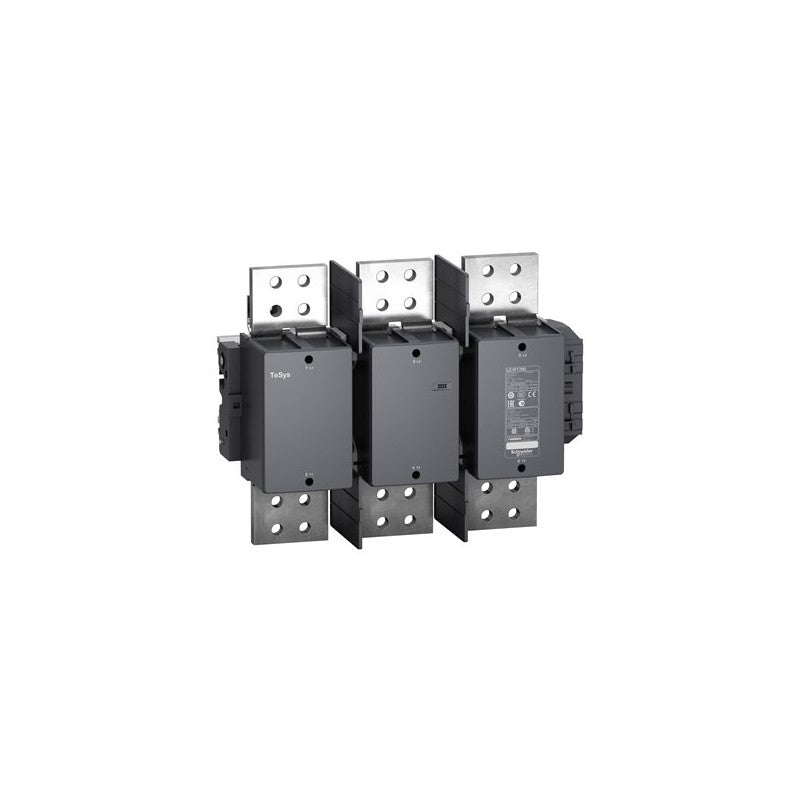

The Schneider Electric TeSys F series LC1F1700 is a 3-pole (3 Normally Open) AC contactor designed for heavy-duty industrial applications. This contactor is rated for AC-1 duty up to 1000V AC and a significant 1700A current rating. It is engineered for robust switching operations in demanding environments, commonly found in large motor control circuits or power distribution systems.

Technical details

• Series: TeSys F
• Configuration: 3 Pole (3 Normally Open contacts)
• AC-1 Duty Rating: Up to 1000V AC
• AC-1 Current Rating: 1700A
• Coil Voltage Options:
  • 110-500V AC at 40/400Hz (LX1/LX9 designation)
  • 110-440V DC (LX4 designation)
• Control Circuit Voltage: Compatible with specified AC and DC coil voltages.
• Mounting Type: Panel mount (specific details require datasheet verification).
• Terminal Type: Screw terminals (specific details require datasheet verification).

Applications & compatibility

This TeSys F contactor is suitable for direct-on-line starting of large three-phase motors, capacitor banks, and other high-power loads. It is frequently specified for use in heavy industries such as mining, steel production, and large-scale material handling systems where reliable and high-capacity switching is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1F1700 or contact our technical team for cross-reference assistance with compatible TeSys F components.
