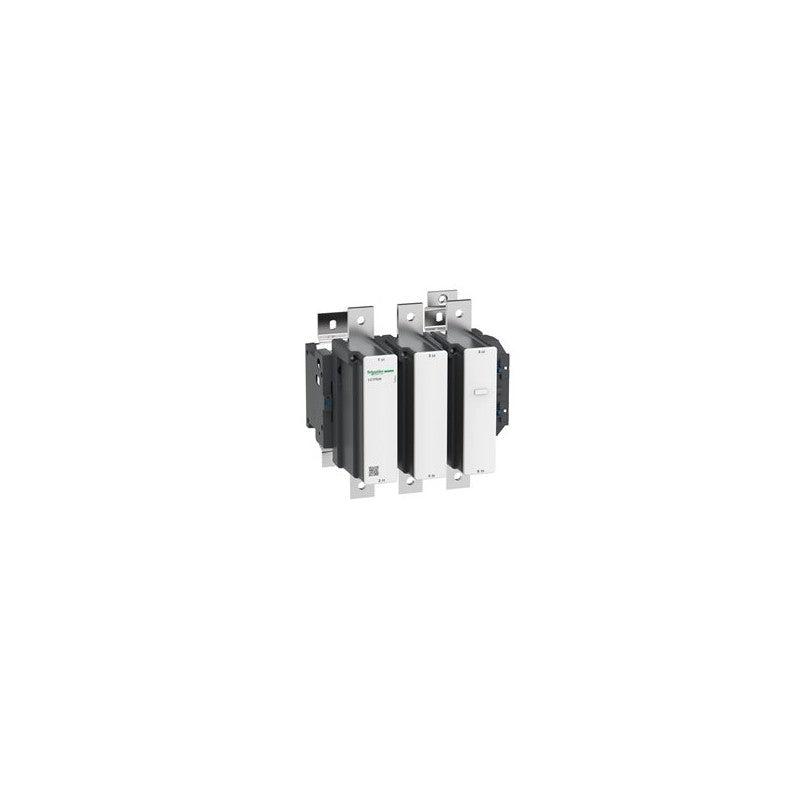

The Schneider Electric TeSys F contactor, model LC1F630, is a 3-pole device designed for AC-3 duty up to 440V and 630A. This contactor is engineered for heavy-duty switching applications within industrial control panels and motor control centers. It is part of the robust TeSys F series, known for its reliability in demanding environments.

Technical details

• Series: TeSys F
• Number of Poles: 3
• Contact Configuration: 3 Normally Open (NO)
• AC-3 Duty Rating: Up to 440V
• Current Rating (AC-3): 630A
• Coil Voltage Options:
  • 48-1000V AC at 40/400Hz (LX1/LX9 designation)
  • 48-440V DC (LX4 designation)
• Control Circuit Voltage Compatibility: Supports a wide range of AC and DC control voltages as specified by the LX designations.
• Terminal Type: Screw terminals for secure connections.

Applications & compatibility

This TeSys F contactor is suitable for direct on-line starting and stopping of three-phase motors in applications such as large pump systems, industrial fans, compressors, and heavy-duty conveyor systems. It is designed to integrate seamlessly into existing motor control circuits requiring high current switching capabilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1F630 or contact our technical team for cross-reference assistance with compatible TeSys F components.
