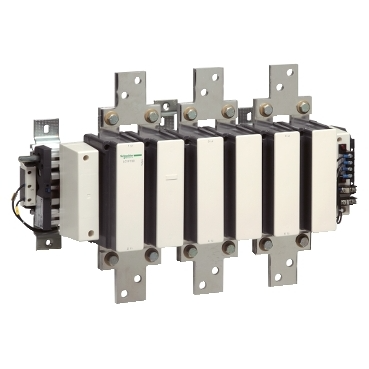

The Schneider Electric TeSys F contactor, designated LC1F780U7, is a robust 3-pole switching device designed for heavy-duty AC-3 applications. This contactor is engineered to handle significant power loads, making it suitable for motor control and power switching in demanding industrial environments. Its construction within the TeSys F series signifies a commitment to reliability and performance in critical automation systems.

Technical details

• Series: TeSys F
• Number of Poles: 3 (3 Normally Open - NO)
• AC-3 Utilization Category: Suitable for motor control applications
• Maximum AC-3 Voltage Rating: Up to 440 V
• Continuous Current Rating (AC-3): 780 A
• Coil Voltage: 240 V AC
• Terminal Type: Screw terminals (verify against datasheet for specific configuration)
• Mounting Type: DIN rail or panel mount (verify against datasheet for specific configuration)
• Dimensions: Refer to manufacturer datasheet for precise dimensions and mounting footprint.

Applications & compatibility

This TeSys F contactor is commonly employed in applications requiring high power motor starting and stopping, such as large conveyor systems, industrial pumps, compressors, and heavy machinery in manufacturing plants. It is designed to integrate seamlessly into control panels and automation systems where reliable and high-current switching is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1F780U7 or contact our technical team for cross-reference assistance with compatible TeSys F components.
