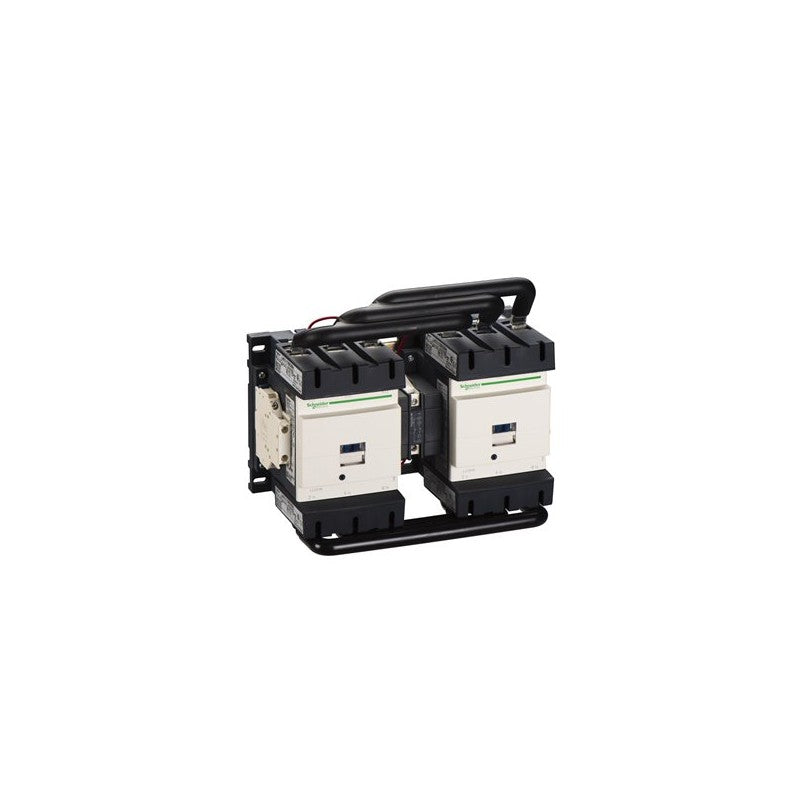

The Schneider Electric LC2D150E7 is a TeSys D series reversing contactor designed for motor control applications. This 3-pole contactor features three normally open (NO) contacts and is rated for AC-3 duty, suitable for switching squirrel cage motors. It operates with a coil voltage of 48 VAC and can handle motor currents up to 150 A at voltages up to 440 V.

Technical details

• Series: TeSys D
• Type: Reversing Contactor
• Poles: 3
• Normally Open (NO) Contacts: 3
• AC-3 Duty Rating: Yes
• Maximum Voltage: <= 440 V
• Current Rating (AC-3): 150 A
• Coil Voltage: 48 VAC

Applications & compatibility

This reversing contactor is commonly employed in applications requiring frequent motor starts and stops, such as on packaging machinery, conveyor systems, and material handling equipment. It is designed to provide reliable control for three-phase motors where reversing direction is a necessary operational function.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC2D150E7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
