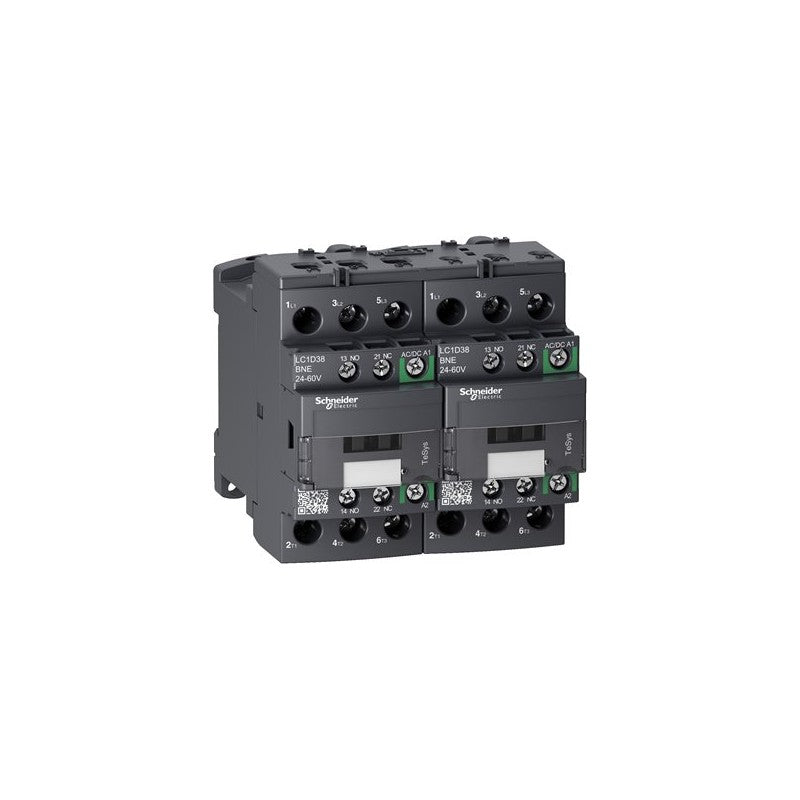

Schneider Electric's TeSys D reversing contactor, the LC2D38BNE, is engineered for reliable motor control in demanding industrial environments. This 3-pole contactor is designed to manage reversing operations for AC-3 rated loads up to 440V, providing a robust solution for motor starting and stopping sequences. Its integrated coil is compatible with a wide range of control voltages, ensuring flexibility in system design.

Technical details

• Series: TeSys D
• Type: Reversing Contactor
• Number of Poles: 3
• AC-3 Rated Current: 38 A
• Maximum AC-3 Power: Up to 18.5 kW at 400 V
• Coil Voltage: 24...60 V AC/DC
• Terminal Type: Screw clamp terminals
• Mounting Type: DIN rail or plate mounting
• Standards Compliance: IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No. 14

Applications & compatibility

The LC2D38BNE is commonly utilized in applications requiring frequent motor direction changes, such as on packaging machinery, conveyor systems, and material handling equipment. Its robust construction and specific design for reversing duty make it suitable for machine tools and other automated production lines where precise motor control is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC2D38BNE or contact our technical team for cross-reference assistance with compatible TeSys D components.
