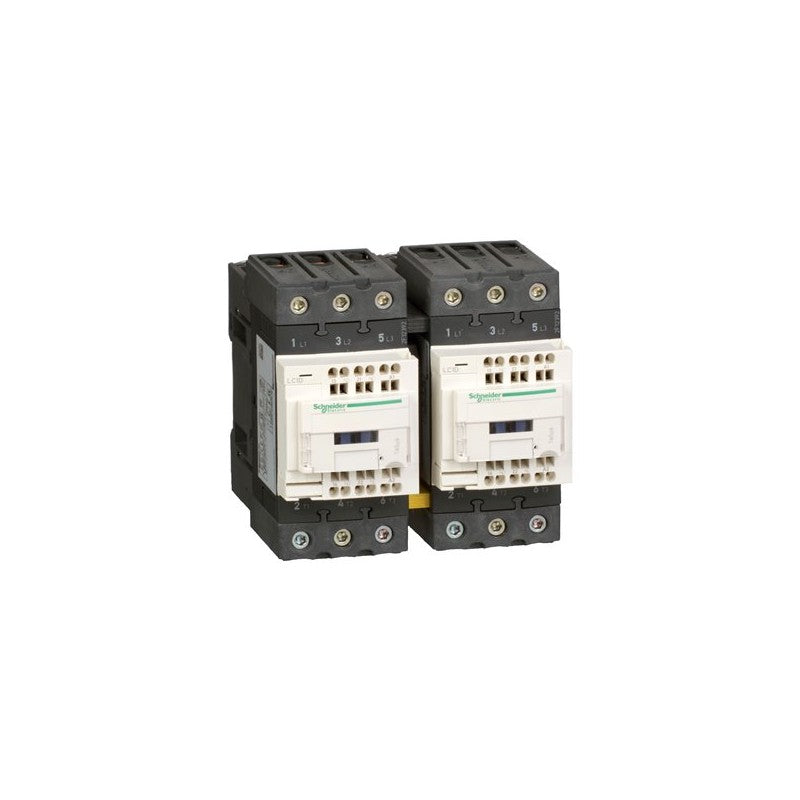

Schneider Electric's TeSys D reversing contactor, model LC2D65A3MD, is engineered for reliable motor control in demanding industrial environments. This 3-pole contactor features normally open (NO) contacts and is designed for AC-3 duty, suitable for switching squirrel cage motors. The LC2D65A3MD is specified for use with power circuits up to 440 Volts and a continuous current rating of 65 Amps.

Technical details

• Series: TeSys D
• Type: Reversing Contactor
• Poles: 3
• Contact Configuration: 3 Normally Open (NO)
• AC-3 Utilization Category: Suitable for switching squirrel cage motors
• Maximum AC-3 Voltage Rating: <= 440 V
• Continuous Current Rating (AC-3): 65 A
• Coil Voltage: 220 V DC

Applications & compatibility

The LC2D65A3MD is commonly employed in applications requiring frequent starting and stopping of motors, such as reversing conveyor systems, machine tool spindles, and pump controls. Its robust design ensures dependable operation in manufacturing plants, material handling facilities, and other industrial settings where precise motor direction control is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC2D65A3MD or contact our technical team for cross-reference assistance with compatible TeSys D components.
