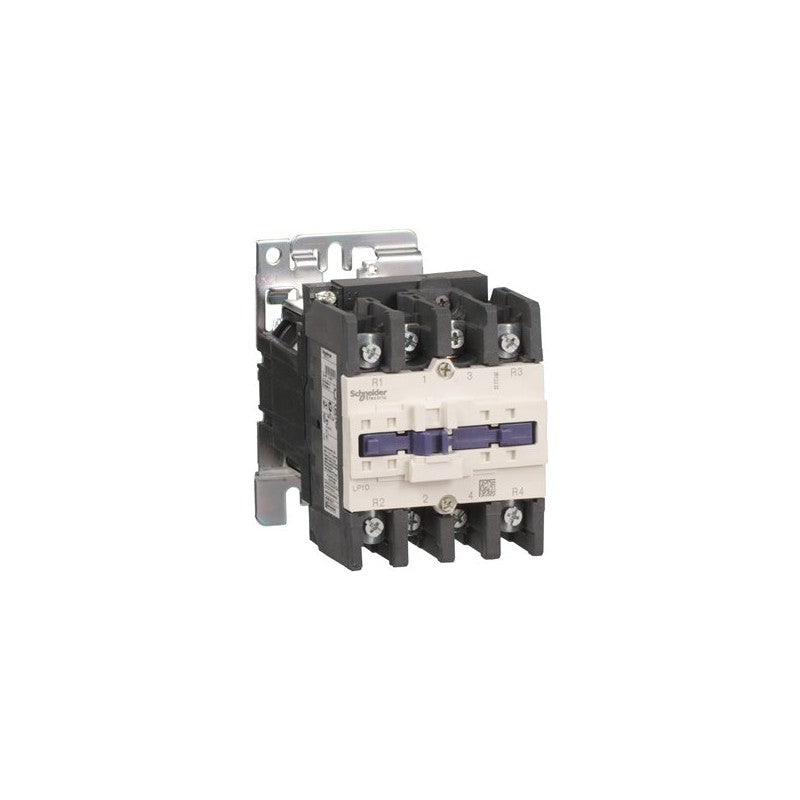

The Schneider Electric TeSys D contactor, model LP1D80008BD, is a 4-pole device designed for AC-1 duty. This contactor features 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing versatile control configurations. It is engineered for applications requiring switching of non-inductive or slightly inductive loads up to 440V and a continuous current rating of 125A.

Technical details

• Series: TeSys D
• Poles: 4
• Auxiliary Contacts: 2 NO + 2 NC
• AC-1 Utilization Category: Suitable for AC-1 loads (non-inductive or slightly inductive loads)
• Maximum AC-1 Voltage: <= 440 V
• Continuous Current Rating (AC-1): 125 A
• Coil Voltage: 24 V DC
• Control Circuit Type: DC coil

Applications & compatibility

This TeSys D contactor is commonly employed in motor control circuits for applications such as HVAC systems, pump control, and general industrial machinery. Its robust design and specific contact configuration make it suitable for direct switching of loads in power distribution panels and control cabinets within manufacturing facilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LP1D80008BD or contact our technical team for cross-reference assistance with compatible TeSys D components.
