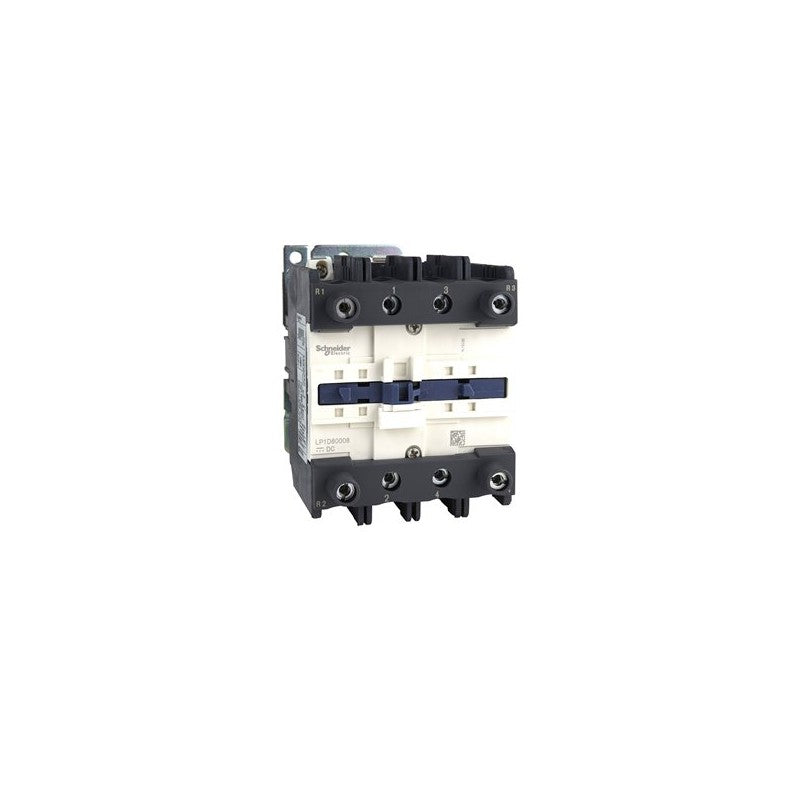

The Schneider Electric TeSys D LP1D80008EW is a 4-pole contactor designed for AC-1 duty applications. This contactor features 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing versatile control configurations. It is rated for circuits up to 440 Volts and handles a significant current of 125 Amps under AC-1 conditions, making it suitable for heavy-duty power switching in industrial environments.

Technical details

• Series: TeSys D
• Configuration: 4-Pole (2 NO + 2 NC auxiliary contacts)
• AC-1 Utilization Category: Suitable for switching non-inductive or slightly inductive loads, such as resistance furnaces, heating units, and incandescent lighting.
• Rated Operational Voltage (AC-1): Up to 440 V
• Rated Operational Current (AC-1): 125 A
• Coil Voltage: 48 V DC
• Control Circuit Type: DC coil
• Terminal Type: Screw terminals (verify against datasheet for specific wire gauge compatibility)

Applications & compatibility

This TeSys D contactor is commonly employed in motor control circuits, power distribution panels, and automation systems requiring robust switching capabilities. Its 4-pole configuration and AC-1 rating make it ideal for applications such as controlling heating elements, capacitor banks, or general power loads in manufacturing facilities, process plants, and building automation systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LP1D80008EW or contact our technical team for cross-reference assistance with compatible TeSys D components.
