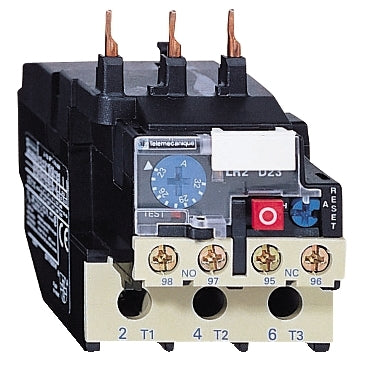

Designed for motor protection in industrial applications, the Schneider Electric TeSys LR.D thermal overload relay is engineered to safeguard electric motors from overcurrent conditions. This relay, part of the established TeSys LR.D series, offers reliable and precise motor overload protection. It is specifically configured for motor control circuits requiring adjustable thermal settings within a defined range.

Technical details

• Series: TeSys LR.D
• Type: Thermal Overload Relay
• Adjustable Current Range: 23 A to 32 A
• Trip Class: Class 10A
• Phase Loss Sensitivity: Included
• Manual/Automatic Reset: Selectable
• Temperature Compensation: Integrated
• Mounting: Direct mount to compatible contactors or separate mounting via accessory kit

Applications & compatibility

This thermal overload relay is commonly employed in motor control centers, pump systems, fan applications, and conveyor belt drives. It is designed to integrate seamlessly with Schneider Electric TeSys D series contactors, providing a complete motor starter solution. Its robust design ensures reliable operation in demanding industrial environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LR2D2353 or contact our technical team for cross-reference assistance with compatible TeSys LR.D components.
