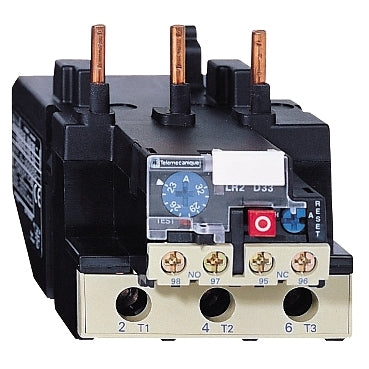

The Schneider Electric TeSys LR2D3353 is a thermal overload relay designed for motor protection in industrial automation systems. This relay is part of the TeSys LR.D series, a robust line of motor control components. It provides reliable protection against overloads and phase failures, ensuring the longevity of electric motors in demanding applications.

Technical details

• Series: TeSys LR.D
• Type: Thermal Overload Relay
• Current Rating: 23...32 A
• Trip Class: Class 10A
• Functionality: Protects electric motors against overloads and phase failures.
• Reset Type: Manual or Automatic reset options are typically available for this series; verify specific model configuration.
• Mounting: Designed for direct mounting onto compatible TeSys contactors or separate mounting with accessories.
• Control Circuit Voltage: Specific control circuit voltage requirements should be confirmed via the manufacturer's datasheet, as it is not explicitly defined by the part number.

Applications & compatibility

This thermal overload relay is commonly employed in motor control circuits for a wide range of industrial machinery. Applications include pump drives, fan systems, conveyor belts, and general-purpose motor control panels. It is designed to work in conjunction with compatible Schneider Electric contactors within the TeSys family.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LR2D3353 or contact our technical team for cross-reference assistance with compatible TeSys components.
