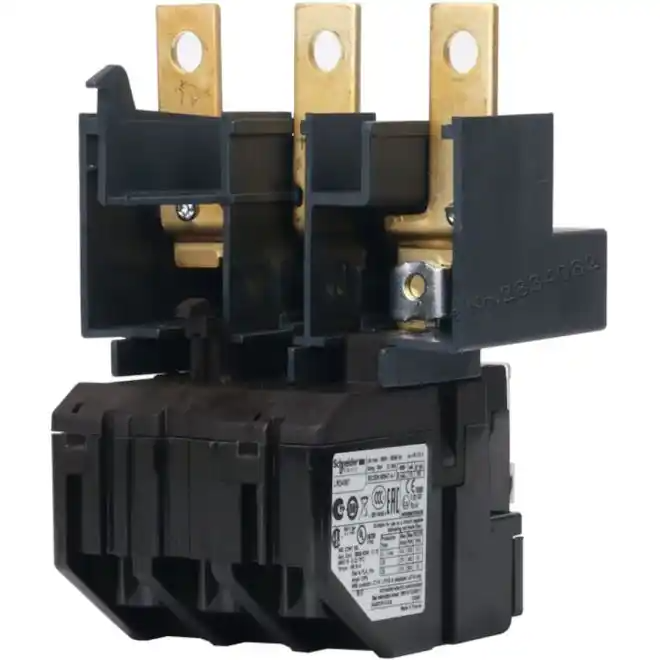

The Schneider Electric LR2D4367 is a thermal overload relay designed for motor protection within the TeSys LR.D series. This relay provides essential overcurrent and phase loss protection for electric motors, ensuring operational continuity and preventing damage. It is engineered to integrate seamlessly into motor control circuits, offering reliable safeguarding for a range of industrial applications.

Technical details

• Series: TeSys LR.D
• Type: Thermal Overload Relay
• Motor Current Rating: 95 A to 120 A
• Trip Class: Class 10A
• Functionality: Protects motors against overloads and phase failures.
• Reset Type: Manual or Automatic reset (verify with datasheet for specific model configuration).
• Mounting: Designed for direct mounting onto compatible Schneider Electric contactors (verify compatibility with specific contactor series).
• Phase Loss Sensitivity: Built-in phase loss sensitivity for enhanced motor protection.

Applications & compatibility

This thermal overload relay is commonly employed in motor control centers and individual motor starter applications across various industries. It is suitable for protecting motors in applications such as conveyor systems, pumps, fans, and machine tools where reliable motor safeguarding is critical. Ensure compatibility with your specific motor and control system by consulting the manufacturer's documentation.
