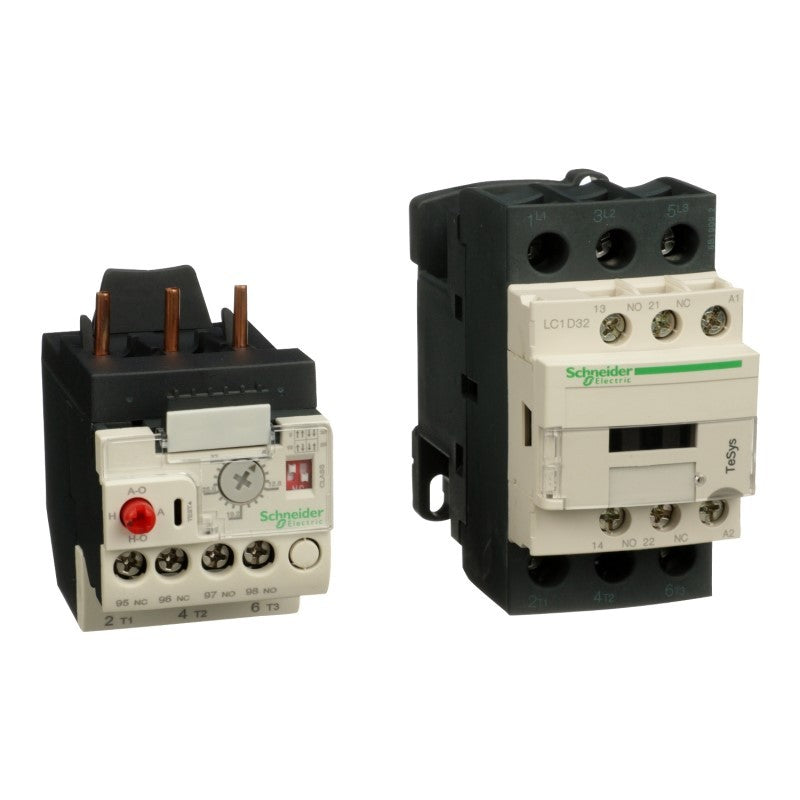

The Schneider Electric LR9D32KITD32G7 is a TESYS motor starter kit designed for robust motor control applications. This kit integrates a LC1D32BD contactor with a LR9D32 thermal overload relay, providing essential protection and switching capabilities for industrial electric motors. It is commonly specified for use in machinery requiring reliable and safe motor operation.

Technical details

• Series: TESYS
• Contactor Model: LC1D32BD
• Thermal Overload Relay Model: LR9D32
• Contactor Rated Operational Current (AC-3, 400V): 32 A
• Contactor Coil Voltage: 230 V AC (indicated by 'D32' in LC1D32BD, common convention for 230V coil)
• Thermal Overload Relay Setting Range: 14-32 A (indicated by '32' in LR9D32, common convention for 32A max setting)
• Kit Configuration: Pre-assembled contactor and thermal overload relay for simplified installation.
• Protection Functionality: Provides motor overload and phase loss protection.

Applications & compatibility

This TESYS motor starter kit is suitable for direct-on-line (DOL) starting of three-phase asynchronous motors. It finds application in various industrial sectors including material handling, pump control, fan systems, and general machinery where precise motor protection and control are paramount. The kit is designed to integrate seamlessly into standard control panels.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LR9D32KITD32G7 or contact our technical team for cross-reference assistance with compatible TESYS components.
