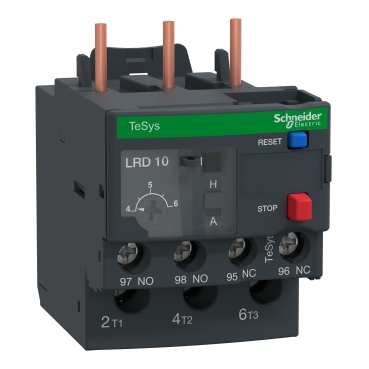

The Schneider Electric LRD10L is a TeSys motor thermal overload relay designed for motor protection in industrial applications. This relay is part of the TeSys family, known for its robust motor control and protection solutions. It provides reliable detection of motor overload conditions, helping to prevent damage and downtime.

Technical details

• Series: TeSys
• Product Type: Motor Thermal Overload Relay
• Current Rating: 4 to 6 Amperes
• Trip Class: Class 20A
• Mounting Type: Typically designed for direct mounting onto compatible Schneider Electric contactors (verify mounting details with manufacturer datasheet).
• Reset Type: Manual and automatic reset options are typically available on this series (verify specific functionality with manufacturer datasheet).
• Phase Loss Sensitivity: Standard for this series, providing protection against phase imbalance.
• Temperature Compensation: Built-in to ensure accurate operation across a range of ambient temperatures.

Applications & compatibility

This LRD10L overload relay is commonly employed in motor control circuits for a wide array of industrial machinery. Applications include protection for motors in conveyor systems, pumps, fans, and machine tools. It is designed to work in conjunction with compatible Schneider Electric contactors to form a complete motor starter assembly.
