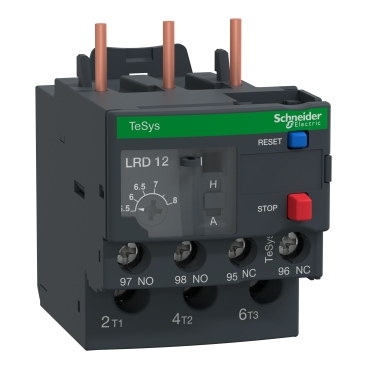

The Schneider Electric LRD12TQ is a TeSys Deca thermal overload relay designed for motor protection applications. This relay provides adjustable thermal overload protection within a specific current range, ensuring the safe operation of electric motors by detecting overcurrent conditions caused by overloads or phase loss. It is a critical component in motor control circuits, preventing damage and downtime.

Technical details

• Series: TeSys Deca
• Type: Thermal Overload Relay
• Adjustable Current Range: 5.5...8 A
• Trip Class: Class 10A
• Terminal Type: TQ 10 (refer to manufacturer datasheet for specific terminal configuration and compatibility)
• Mounting: Designed for direct mounting onto compatible TeSys D contactors (refer to manufacturer datasheet for specific contactor compatibility)
• Reset Type: Manual/Automatic reset functionality (refer to manufacturer datasheet for specific reset configuration)
• Phase Loss Sensitivity: Built-in phase loss sensitivity for enhanced motor protection (refer to manufacturer datasheet for detailed specifications)

Applications & compatibility

This LRD12TQ thermal overload relay is commonly integrated into motor control centers and individual motor starter assemblies for a wide range of industrial machinery. It is suitable for use in applications such as conveyor systems, pumps, fans, and machine tools where reliable motor protection is paramount. Ensure compatibility with your specific motor starter and control panel design by consulting the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LRD12TQ or contact our technical team for cross-reference assistance with compatible TeSys Deca components.
